1. Tervetuloa
Thank you for choosing the ASHATA FG-100 DDS Function Generator. This device is designed for generating various waveforms with high precision and stability, making it suitable for a wide range of electronic testing and calibration applications. Please read this manual thoroughly before operation to ensure proper use and to maximize the lifespan of your device.
2. Tuotteen ominaisuudet
- Generates main output waveforms including sine, square, triangle, and sawtooth.
- Features a filter (toggle on/off) for sine and pulse outputs.
- High precision and stable frequency, ideal for oscilloscope scan time calibration.
- Square wave output suitable for oscilloscope attenuators and probe pulse adjustment.
- Compact size, multi-functional, simple operation, and portable design.
3. Pakkauksen sisältö
- 1 x ASHATA FG-100 DDS Function Generator
- 1 x USB-kaapeli
- 1 x käyttöohje
4. Turvaohjeet
- Always use the specified power supply (DC 3.5-10V, DC 5V adapter or 3.7V recommended).
- Älä altista laitetta kosteudelle tai äärilämpötiloille.
- Vältä laitteen pudottamista tai altistamista voimakkaille iskuille.
- Älä yritä purkaa tai muokata laitetta, sillä se mitätöi takuun ja voi aiheuttaa vahinkoa.
- Pidä poissa lasten ulottuvilta.
5. Asennusopas
5.1 Virran kytkeminen
Connect the provided USB cable to the DC 5V input port on the side of the function generator and to a suitable USB power source (e.g., a computer USB port, a USB wall adapter).
Figure 1: ASHATA FG-100 DDS Function Generator connected via USB cable.
5.2 Ensimmäinen käynnistys
Once power is connected, the device will automatically power on, and the LCD display will illuminate, showing the current waveform function and frequency.
6. Käyttöohjeet
6.1 Käyttöliittymä ohiview
The front panel of the FG-100 features an LCD display, several buttons for control, and an amplitude adjustment knob. The output is provided via a BNC connector.

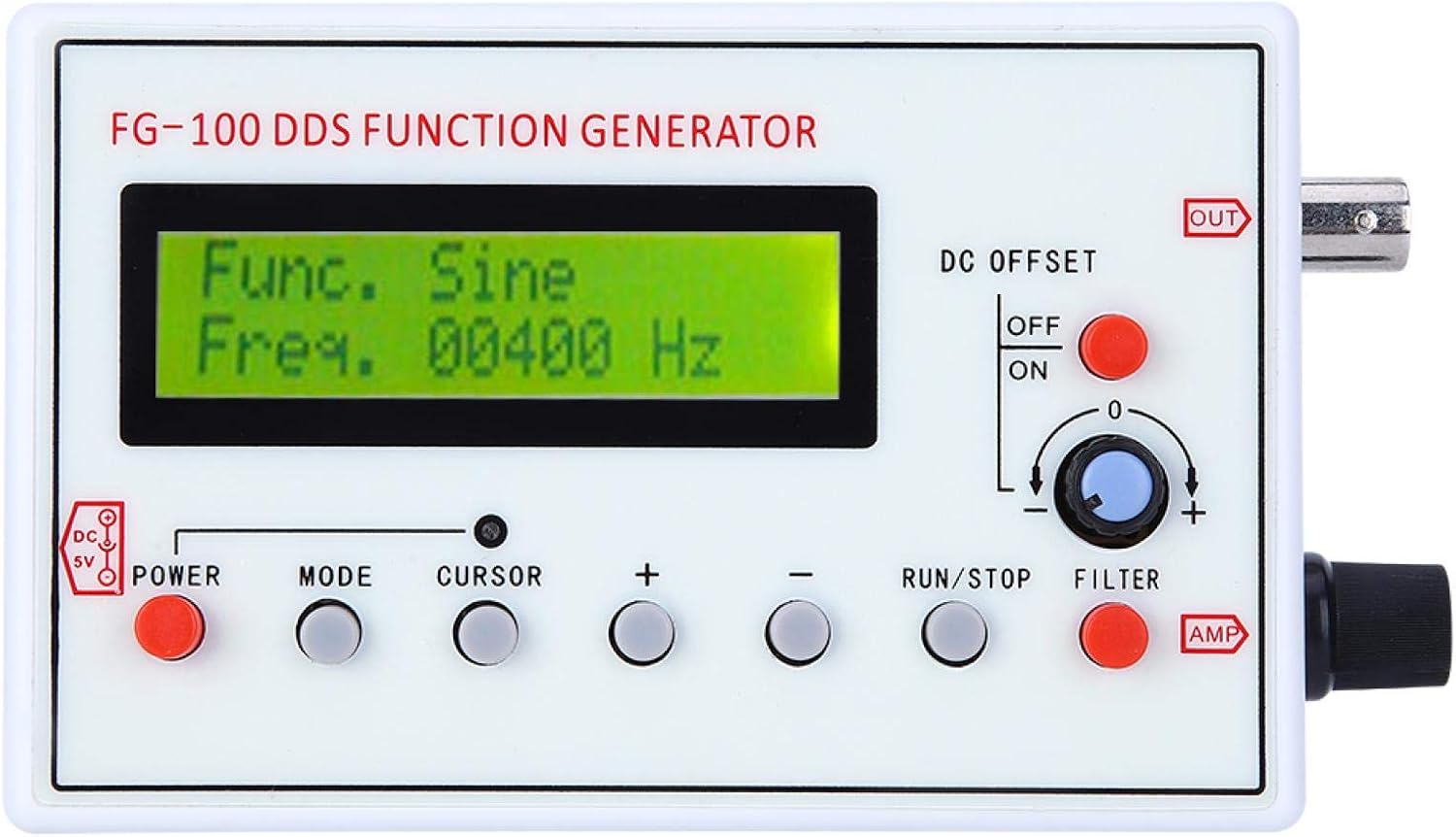

Figure 2: Front panel controls and display of the FG-100.
6.2 Selecting Waveforms
Paina MODE button to cycle through the available waveform types: Sine, Square, Triangle, Forward Sawtooth, Reverse Sawtooth, Pulse, and ECG. The selected waveform will be displayed on the LCD.
6.3 Taajuuden säätö
Käytä KURSORI button to select the digit you wish to adjust. Then, use the + ja - buttons to increase or decrease the frequency value. The frequency range for sine waves is 1Hz to 500kHz (amplitude flat up to 200kHz), and for other waveforms, it is 1Hz to 20kHz for optimal phase noise and distortion.
6.4 Säätö Amplitude and DC Offset
- Amplitude (AMP): Kierrä AMP knob on the right side of the device to adjust the output waveform amplitude. The maximum output amplitude is ±10V (peak-to-peak).
- DC Offset: Käytä DC OFFSET switch (ON/OFF) and the associated knob to apply or adjust a DC bias to the waveform. The maximum DC offset is ±10V.
6.5 Using the Filter
Paina SUODATTAA button to toggle the internal filter on or off. This filter is designed for sine and pulse waveforms.
6.6 Outputting Waveforms
Paina RUN / STOP button to start or stop the waveform output. When running, the waveform will be generated at the OUT BNC-liitin.
6.7 Toiminnan esittely
Video 1: Demonstration of waveform selection, frequency adjustment, and output control on a similar DDS Function Generator (FG-200).
7. Tekniset tiedot
| Erittely | Arvo |
|---|---|
| Kohteen tyyppi | Tehtävä Generator |
| Materiaali | ABS |
| Taajuusalue (sini) | 1Hz~500kHz (Magnitude flat up to 200kHz) |
| Taajuusalue (muut aaltomuodot) | 1Hz~20kHz (with good phase noise and small distortion) |
| Resoluutio | 1 Hz |
| Lähtöaaltomuodot | Sine, Square, Triangle, Forward Sawtooth, Reverse Sawtooth, Pulse, ECG |
| Sine Distortion | 1% (frequency = 1kHz) |
| Lähtö Ampleveyttä | Maksimi ±10 V (PP) |
| Lähtöimpedanssi | 50 ohmia |
| DC-siirto | Maximum ±10V (can be turned off) |
| Sisäinen suodatin | For sine or pulse, can be turned on/off |
| Virtalähde | DC 3.5-10V (DC 5V adapter or 3.7V recommended) |
| Tuotteen paino | 240 g |
| Valmistaja | ASHATA |
| Mallinumero | RRCc16w9sb5kxiua361 |
| Alkuperämaa | Kiina |
8. Hoito ja huolto
- Puhdistus: Puhdista laitteen ulkopinta pehmeällä, kuivalla liinalla. Älä käytä hankaavia puhdistusaineita tai liuottimia.
- Varastointi: Store the function generator in a cool, dry place away from direct sunlight and extreme temperatures.
- Käsittely: Handle the device with care to avoid damage to the display or connectors.
9. Vianetsintäopas
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Laite ei käynnisty. | No power, faulty USB cable, or power source issue. | Ensure USB cable is securely connected. Try a different USB port or power adapter. Verify power source is active. |
| Ei aaltomuotoa ulostulona. | Output stopped, incorrect settings, or faulty connection. | Press the RUN/STOP button to start output. Check frequency and amplitude settings. Ensure output cable is correctly connected to the BNC port. |
| Settings are not saved after power off. | This model does not feature memory retention for settings. | Settings must be re-entered after each power cycle. |
| Inaccurate frequency output. | Calibration needed or external interference. | Use an external frequency counter or oscilloscope to verify and adjust settings if necessary. Ensure proper grounding. |
10. Takuu ja asiakastuki
ASHATA products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase or visit the official ASHATA websivusto. Säilytä ostokuitti ostotodistuksena takuuvaatimuksia varten.
