1. Johdanto
The ECOXGEAR EcoEdge Plus GDI-EXEGPL410 is a rugged, waterproof, and floating portable Bluetooth speaker designed for outdoor use. It features 20 watts of audio output, multi-mode LED party lights, and an integrated bottle opener. This manual provides essential information for setting up, operating, and maintaining your speaker.
Edessä view of the ECOXGEAR EcoEdge Plus speaker, showcasing the illuminated blue LED light behind the grille.
2. Asennus
2.1 Kaiuttimen lataaminen
Before initial use, fully charge your EcoEdge Plus speaker. The battery fully recharges in approximately 3 hours.
- Locate the waterproof flap labeled 'POWER + CONNECT' on the underside of the speaker.
- Open the flap to access the charging port.
- Liitä mukana toimitettu latauskaapeli kaiuttimeen ja virtalähteeseen.
- Latauksen merkkivalo syttyy. Kun akku on ladattu täyteen, valon väri voi muuttua tai se voi sammua mallista riippuen.
- Ensure the waterproof flap is securely closed before exposing the speaker to water.

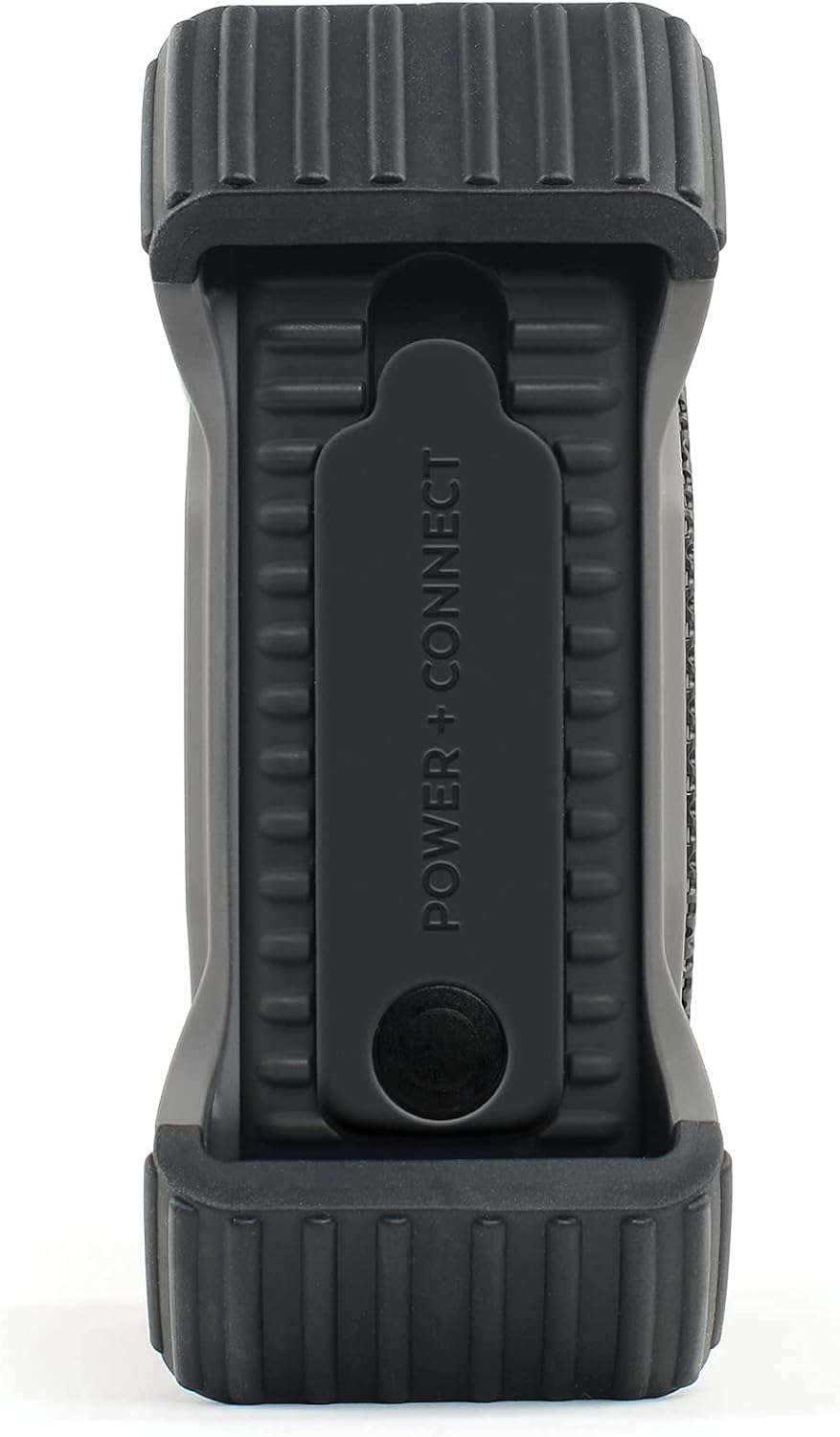

Underside of the speaker, revealing the waterproof flap that covers the charging and AUX-IN ports, labeled 'POWER + CONNECT'.
2.2 Virran kytkeminen päälle/pois
- Käynnistä painamalla -painiketta pitkään Virtapainike (
), kunnes merkkivalot syttyvät. - Katkaise virta pitämällä -painiketta painettuna Virtapainike kunnes merkkivalot sammuvat.
3. Käyttöohjeet
Close-up of the speaker's control panel, featuring power, Bluetooth, ECOCONNECT, volume, track control, play/pause, and ECOTALK buttons, along with LED indicators.
3.1 Bluetooth -pariliitos
Connect your EcoEdge Plus to a Bluetooth-enabled device to stream audio wirelessly.
- Ensure the speaker is powered on. The Bluetooth indicator light will flash, indicating it is in pairing mode.
- Ota Bluetooth käyttöön laitteellasi (älypuhelin, tabletti jne.) ja hae käytettävissä olevia laitteita.
- Select "ECOXGEAR EcoEdge Plus" from the list of devices.
- Kun yhteys on muodostettu, kaiuttimen Bluetooth-merkkivalo palaa tasaisesti.
- You can now play audio from your device through the speaker. The Bluetooth range is up to 100 feet.
3.2 ECOCONNECT (TrueWireless Stereo) Pairing
Pair two EcoEdge Plus units together for a TrueWireless Stereo (TWS) sound experience.
- Ensure both EcoEdge Plus speakers are powered on and not connected to any Bluetooth device.
- Paina yhden kaiuttimen (tämä on ensisijainen kaiutin) -painiketta. ECOCONNECT button (
). The ECOCONNECT indicator light will flash. - Paina toisessa kaiuttimessa ECOCONNECT button. Its ECOCONNECT indicator light will also flash.
- The two speakers will automatically connect to each other. The ECOCONNECT indicator lights on both speakers will become solid.
- Now, connect your Bluetooth device to the primary speaker as described in Section 3.1. Audio will play in stereo across both speakers.
- The ECOCONNECT range between two speakers is within 30 feet.
3.3 Kaiutinpuhelimen toiminnallisuus
The EcoEdge Plus features a built-in speakerphone for hands-free calls.
- Kun puhelu saapuu, musiikki keskeytyy.
- Paina Toista/Tauko-painike () vastataksesi puheluun.
- Lopeta puhelu painamalla Toista/Tauko-painike uudelleen.
3.4 LED-juhlavalot
The speaker includes multi-mode LED party lights for enhanced ambiance.
- Paina Light Mode -painike () to cycle through different light modes.
- Refer to the specific light patterns in your product's quick start guide for detailed descriptions of each mode.
3.5 Voice Assistant Integration (ECOTALK)
Access your device's voice assistant (Siri or Ok Google) directly from the speaker.
- Ensure your speaker is connected to your device via Bluetooth.
- Paina ECOTALK button () aktivoidaksesi ääniavustajan.
- Speak your command clearly into the speaker's microphone.
3.6 Integrated Bottle Opener
The EcoEdge Plus includes a convenient bottle opener built into its design.
Side profile of the speaker, highlighting the built-in bottle opener located at one end.
4. Huolto
4.1 Puhdistus
- Puhdista kaiutin pehmeällä, damp kangas.
- Avoid using abrasive cleaners or solvents, as these may damage the speaker's finish or waterproof seals.
4.2 Vedeneristys
The EcoEdge Plus is 100% waterproof and dustproof (IP67 standard) and floats. To maintain its waterproof integrity:
- Always ensure the 'POWER + CONNECT' flap covering the charging and AUX-IN ports is securely closed before exposing the speaker to water or dust.
- Do not submerge the speaker for extended periods beyond its rated depth or duration.
- Rinse the speaker with fresh water after exposure to saltwater or chlorinated water to prevent corrosion.
5. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Kaiutin ei käynnisty. | Akku on tyhjä. | Lataa kaiutin mukana toimitetulla latauskaapelilla. |
| Pariliitos Bluetoothin kautta ei onnistu. | Kaiutin ei ole pariliitostilassa; laitteen Bluetooth on pois päältä; kaiutin on jo yhdistetty toiseen laitteeseen. | Ensure speaker is powered on and Bluetooth indicator is flashing. Turn off and on your device's Bluetooth. Disconnect from other devices. |
| Ei ääntä. | Volume is too low; device is not connected; audio source issue. | Increase speaker and device volume. Verify Bluetooth connection. Check audio source on your device. |
| ECOCONNECT pairing fails. | Kaiuttimet ovat liian kaukana toisistaan; yksi kaiutin on jo yhdistetty Bluetooth-laitteeseen. | Ensure speakers are within 30 feet of each other. Disconnect any Bluetooth devices from both speakers before initiating ECOCONNECT pairing. |
6. Tekniset tiedot
- Merkki: ECOXGEAR
- Mallinumero: GDI-EXEGPL410
- Kaiuttimen suurin lähtöteho: 20 wattia
- Yhteystekniikka: Bluetooth
- Äänilähtötila: Stereot
- Vedenkestävyystaso: Vedenpitävä (IP67)
- Bluetooth-alue: Jopa 100 jalkaa
- ECOCONNECT Range: Up to 30 feet (between two speakers)
- Akun toistoaika: 10+ hours (full volume), 20+ hours (low volume)
- Akun latausaika: Noin 3 tuntia
- Subwooferin halkaisija: 3 tuumaa
- Tuotteen mitat (S x L x K): 2.3 cm x 5.5 cm x 5.5 cm
- Tuotteen paino: 1.1 kiloa
- Virtalähde: Paristokäyttöinen (1 litiumioniakku mukana)
- Valvontamenetelmä: Button, Voice Control
- Lisäominaisuudet: Portable, Stereo Pairing, Built-in Bottle Opener, LED Party Lights, Speakerphone
7. Takuu ja tuki
7.1 Takuutiedot
The ECOXGEAR EcoEdge Plus GDI-EXEGPL410 typically comes with a 90-day limited warranty. Please refer to your product packaging or the manufacturer's official websivustolta löydät ajankohtaisimmat ja yksityiskohtaisimmat takuuehdot.
7.2 Asiakastuki
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact ECOXGEAR customer support through their official websivustolla tai tuotteen mukana toimitetuissa yhteystiedoissa.
