Kohler 1227235 Canister Valve Assembly Service Kit Instruction Manual

Johdanto

This instruction manual provides detailed guidance for the installation, operation, and maintenance of the Kohler 1227235 Canister Valve Assembly Service Kit. This kit is designed to replace worn or damaged components of your existing Kohler canister flush valve, restoring optimal performance to your toilet. Please read all instructions carefully before beginning installation.

Turvallisuustiedot

• Always turn off the water supply to the toilet before beginning any work.
• Käytä asennuksen aikana asianmukaisia ​​henkilönsuojaimia, kuten käsineitä ja silmäsuojaimia.
• Varmista, että kaikki liitännät ovat tiukasti kiinni vuotojen estämiseksi.
• Jos olet epävarma jostakin vaiheesta, ota yhteyttä pätevään putkimieheen.

Pakkauksen sisältö

Varmista, että kaikki osat ovat mukana ennen asennuksen aloittamista:

• Canister valve assembly components (specific parts may vary by kit, typically include seals, gaskets, and valve body parts).
• Asennusohjeet (tämä käyttöohje).

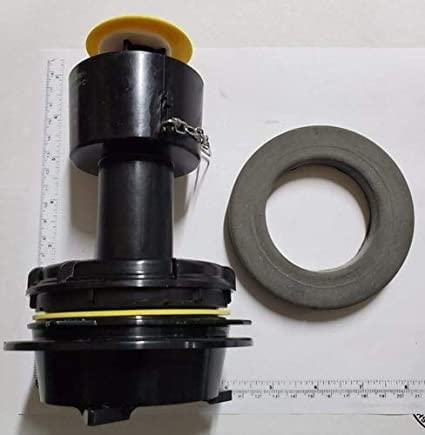

Kuva 1: Example of Kohler 1227235 Canister Valve Assembly Service Kit components. Actual contents may vary slightly.

Asennus ja asennus

This section outlines the steps for replacing the canister valve assembly. Tools typically required include a sponge or towel, and possibly a wrench for the water supply line.

1. Vedenjakelun sulkeminen: Locate the water supply valve for the toilet, usually on the wall behind or near the toilet. Turn the valve clockwise until the water supply is completely shut off.
2. Huuhtele WC: Flush the toilet to drain the tank. Hold the flush lever down until as much water as possible has drained from the tank. Use a sponge or towel to remove any remaining water from the tank.
3. Disconnect Supply Line (if necessary): If the canister valve assembly requires removal from the bottom of the tank, you may need to disconnect the water supply line from the fill valve. Place a small bucket underneath to catch any residual water.
4. Remove Old Canister Valve Assembly: Depending on your specific Kohler toilet model, the canister valve assembly may twist off, unclip, or be secured by nuts from underneath the tank. Carefully follow the removal procedure for your toilet model. Remove all old gaskets and seals.
5. Clean Tank Base: Thoroughly clean the area where the canister valve assembly sits at the bottom of the toilet tank. Remove any mineral deposits or debris to ensure a proper seal with the new components.
6. Install New Canister Valve Assembly: Assemble the new canister valve components according to the specific design of the Kohler 1227235 kit. Place new gaskets and seals as instructed. Carefully position the new assembly into the tank opening and secure it. Ensure it is seated correctly and tightened appropriately to prevent leaks, but do not overtighten.
7. Reconnect Supply Line (if necessary): Reconnect the water supply line to the fill valve, ensuring a hand-tight connection, then a quarter turn with a wrench.
8. Palauta vedenjakelu: Slowly turn the water supply valve counter-clockwise to restore water to the toilet tank. Check for any leaks around the new assembly and the supply line connection.
9. Testihuuhtelu: Allow the tank to fill completely, then flush the toilet several times to ensure proper operation and check for any leaks or issues with the flush mechanism.

Käyttö (asennuksen jälkeinen tarkistus)

After installation, proper operation is indicated by:

• The toilet tank filling to the correct water level without continuous running.
• A complete and efficient flush when the lever is actuated.
• No visible leaks from the tank or connections.
• The flapper or seal closing completely after a flush, preventing water from continuously flowing into the bowl.

Huolto

Regular maintenance helps prolong the life of your canister valve assembly:

• Säännöllinen tarkastus: Annually inspect the canister valve seal for wear, cracks, or mineral buildup.
• Puhdistus: If mineral deposits accumulate, turn off the water, drain the tank, and gently clean the valve components with a soft brush and a mild, non-abrasive cleaner. Avoid harsh chemicals that can damage rubber seals.
• Tiivisteen vaihto: The flapper or seal is a wear item. If you notice the toilet running intermittently or ghost flushing, the seal may need replacement.

Vianetsintä

Tekniset tiedot

Takuu ja tuki

For warranty information and technical support, please refer to the official Kohler website or contact Kohler customer service directly. Keep your proof of purchase for warranty claims.

Official Kohler Websivusto: www.kohler.com
