ITCPower IT-GG40Ei Inverter Generator User Manual

1. Johdanto

Thank you for choosing the ITCPower IT-GG40Ei Inverter Generator. This manual provides detailed instructions for the safe and proper use, maintenance, and troubleshooting of your generator. Please read this manual thoroughly before operating the unit and keep it for future reference.

The IT-GG40Ei is a compact and portable inverter generator designed to provide a stable 230V power supply for various applications, including home and business use, with a maximum power output of 4000W. Its pure sinusoidal curve output makes it suitable for sensitive electronic equipment.

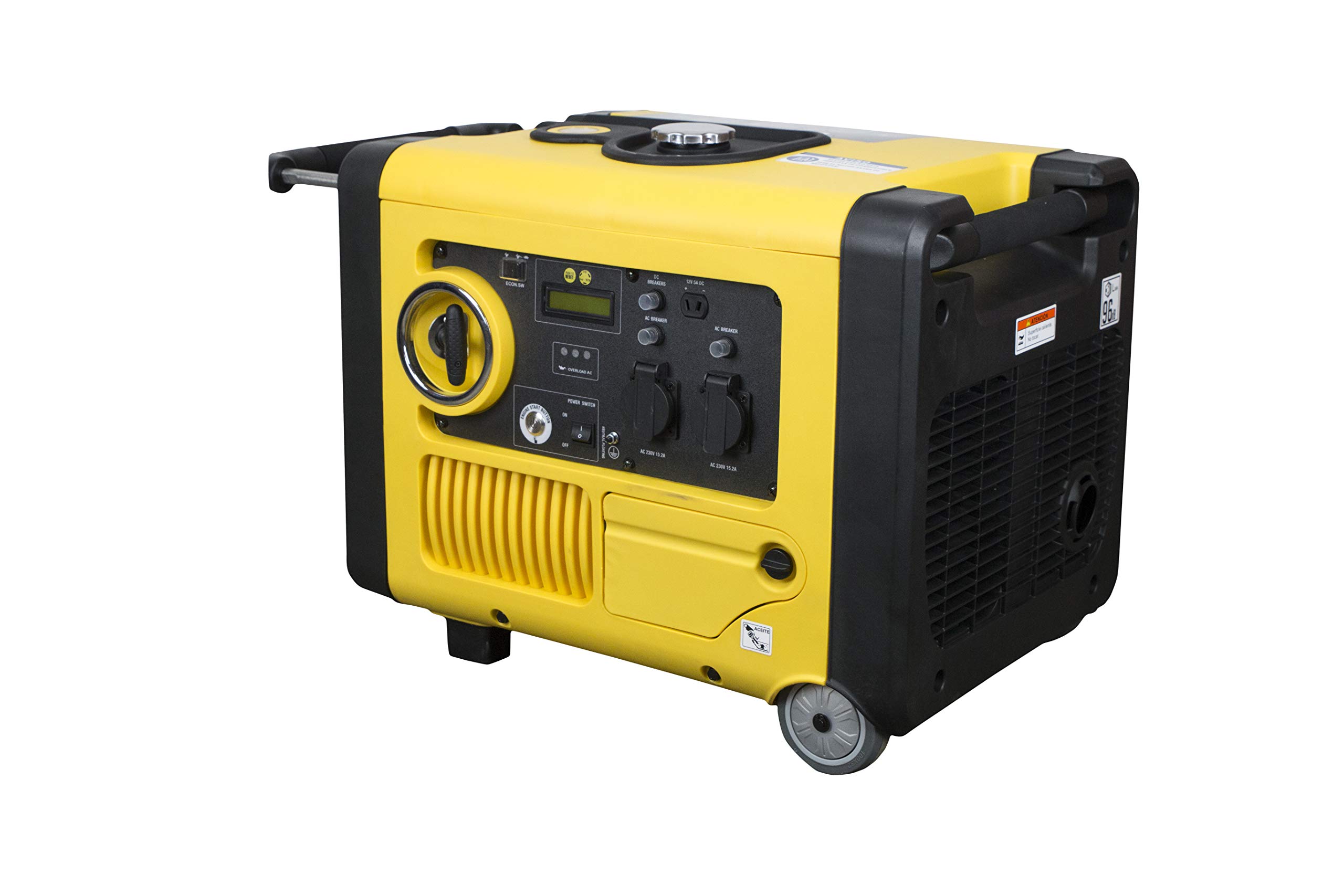

Kuva 1: Etuosa view of the ITCPower IT-GG40Ei Inverter Generator, showing the control panel and outlets.

2. Turvallisuustiedot

Always observe the following safety precautions to prevent serious injury or death. Failure to follow these instructions can result in fire, electric shock, or carbon monoxide poisoning.

• Hiilimonoksidin vaara: Älä koskaan käytä generaattoria sisätiloissa tai huonosti ilmastoiduissa tiloissa. Pakokaasu sisältää hiilimonoksidia, väritöntä, hajutonta ja myrkyllistä kaasua.
• Sähköiskun vaara: Do not operate the generator in wet conditions. Ensure all connections are dry and properly insulated.
• Tulipalon vaara: Bensiini on erittäin helposti syttyvää. Tankkaa hyvin ilmastoidussa tilassa moottori sammutettuna ja jäähtyneenä. Älä tupakoi tankkaamisen aikana.
• Kuumat pinnat: The generator's engine and exhaust system become very hot during operation and remain hot for some time after shutdown. Avoid contact to prevent burns.
• Lapset ja lemmikit: Pidä lapset ja lemmikit poissa generaattorin läheltä käytön aikana.
• Induktiiviset kuormat: This generator is not suitable for inductive machinery.

Kuva 2: Sivu view of the generator, highlighting important warning labels regarding hot surfaces and proper usage.

3. Komponentit ohiview

3.1. Mukana tulevat tarvikkeet

Upon unboxing your ITCPower IT-GG40Ei generator, you will find the following items:

• Huoltotyökalut
• Two Ignition Keys
• Kaksi kaukosäädintä
• Öljyn täyttöpullo
• Käyttöohje

3.2. Ohjauspaneeli

The main control panel provides access to all necessary functions for operating the generator.

• Käynnistys avain: Used for electric start and turning the unit ON/OFF.
• 12 V:n tasavirtapistoke: For charging 12V batteries (12V 8.3A).
• 230V AC Outlets (x2): Standard power outlets (AC 230V 15.2A).
• Katkaisijat: Protect the AC and DC outlets from overload.
• Kaukosäätimen kytkin: Activates the remote start/stop function.
• Digitaalinen näyttö: Shows operational parameters such as voltage, current, power, and fuel level.
• ECON.SW (Economy Switch): Kytkee päälle säästötilan, joka vähentää polttoaineenkulutusta ja melua pienemmillä kuormilla.
• OVERLOAD AC Indicator: Illuminates if the AC output is overloaded.

Kuva 3: Lähikuva view of the generator's control panel, detailing the ignition, outlets, and display.

3.3. Mobility Features

The IT-GG40Ei is equipped with four transport wheels and a brake mechanism for easy maneuverability and secure placement.

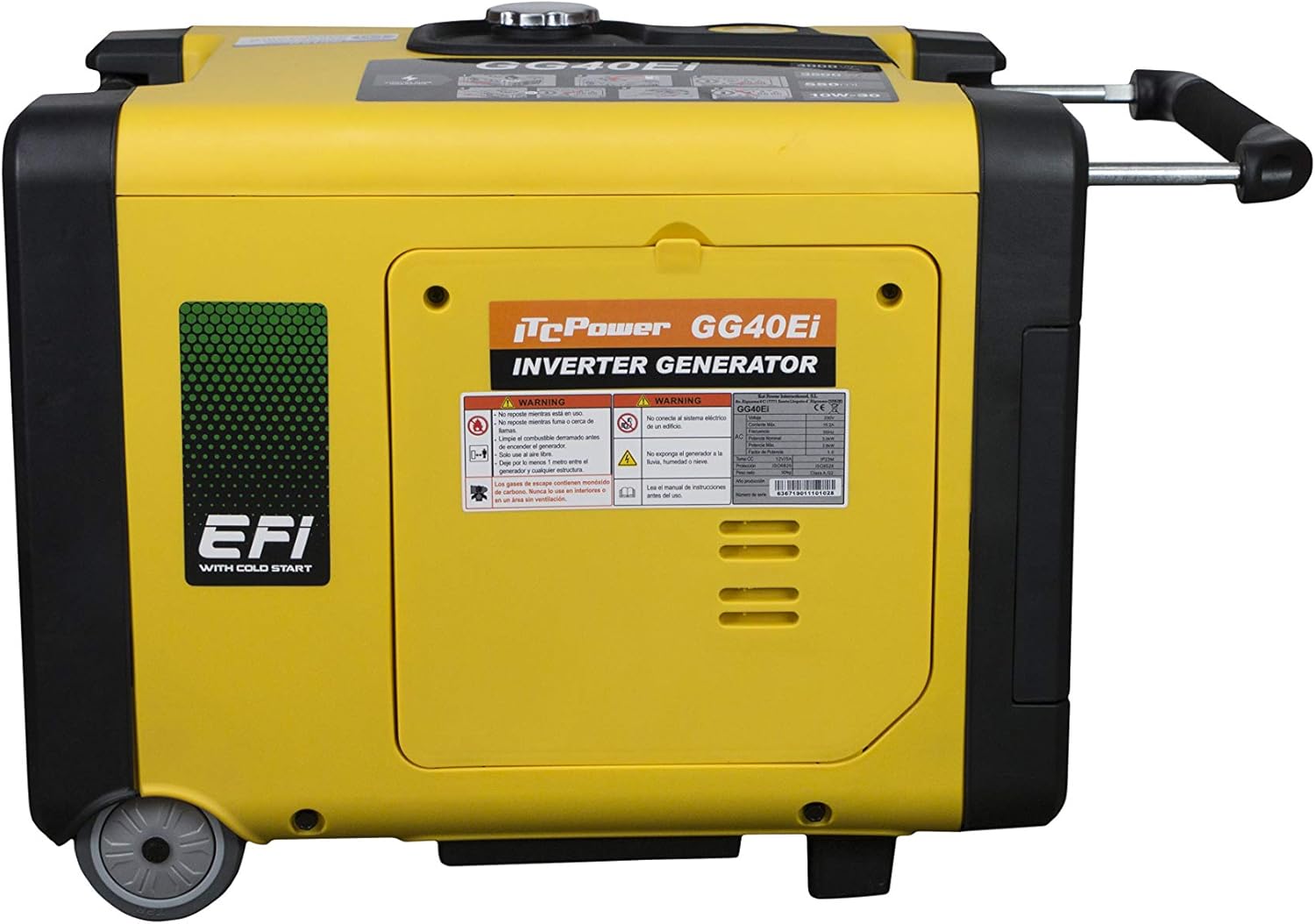

Kuva 4: Sivu view showing the transport wheels and retractable handle for easy movement.

4. Asennusmenettelyt

Before starting the generator for the first time, perform the following setup steps:

4.1. Fill Engine Oil

1. Locate the oil filler cap on the side of the generator.
2. Use a screwdriver to remove the small cover protecting the oil filler access.
3. Unscrew the oil filler cap/dipstick.
4. Using the provided oil bottle, carefully fill the engine with 15W-40 motor oil. Do not overfill.
5. Check the oil level using the dipstick without screwing it in. The oil should reach the upper mark.
6. Once the correct level is achieved, screw the oil filler cap back on and replace the protective cover.

4.2. Liitä akku

1. Locate and remove the side access panel to expose the battery compartment.
2. Connect the battery cables, ensuring correct polarity (red to positive, black to negative).
3. Securely close the side access panel.

4.3. Fill Fuel Tank

1. Unscrew the fuel tank cap located on top of the generator.
2. Using a funnel, carefully fill the fuel tank with unleaded gasoline. Do not overfill.
3. Sulje polttoainesäiliön korkki tukevasti.

5. Käyttöohjeet

Ensure the generator is placed on a level, stable surface in a well-ventilated outdoor area before starting.

5.1. Electric Start

1. Insert the ignition key into the key slot on the control panel.
2. Käännä avain ON-asentoon.
3. Turn the key further to the 'START' position and hold until the engine starts.
4. Release the key, and it will return to the 'ON' position.

5.2. Manual Start (Recoil Start)

1. Insert the ignition key into the key slot on the control panel.
2. Käännä avain ON-asentoon.
3. Locate the recoil starter handle on the side of the generator.
4. Pull the starter handle firmly and smoothly until the engine starts.
5. Slowly return the starter handle to its original position.

5.3. Etäkäynnistys

1. Ensure the ignition key is either in the 'STOP' position or removed from the generator.
2. Flip the 'REMOTE CONTROL' switch on the control panel to the 'ON' position.
3. Take one of the provided remote controls.
4. Double-press the start button on the remote control to start the engine.

5.4. Generaattorin pysäyttäminen

Generaattorin pysäyttäminen:

• If using remote control, press the stop button on the remote.
• Alternatively, turn the ignition key to the 'OFF' position.

5.5. Economy Mode

The generator features a variable engine speed function (ECON.SW) for reduced fuel consumption and lower noise levels when operating at lighter loads. Engage this switch for optimal efficiency when full power is not required.

6. Huolto

Regular maintenance is crucial for the longevity and optimal performance of your generator. Always ensure the generator is turned off and cooled down before performing any maintenance.

6.1. Päivittäiset tarkastukset

• Tarkista moottoriöljyn taso ja lisää tarvittaessa.
• Inspect for any fuel or oil leaks.
• Check air filter for cleanliness. Clean or replace if dirty.
• Ensure all connections and fasteners are secure.

6.2. Säännöllinen huolto

• 50 tunnin välein tai kuukausittain: Vaihda moottoriöljy.
• Every 100 hours or 3 months: Clean/replace spark plug, clean fuel filter, inspect fuel lines.
• 300 tunnin välein tai vuosittain: Inspect valve clearance (professional service recommended).

6.3. Varastointi

For long-term storage, ensure the fuel tank is drained, and the carburetor is run dry. Change the engine oil and store the generator in a clean, dry place.

7. Vianmääritys

If your generator experiences issues, refer to the following common troubleshooting steps. For complex problems, contact qualified service personnel.

8. Tekniset tiedot

9. Takuu ja tuki

For warranty information, technical support, or service inquiries, please contact your authorized ITCPower dealer or the customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
