Johdanto
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Frigidaire A10281701 Dishwasher Circulation Pump. This is a genuine Original Equipment Manufacturer (OEM) part designed for specific Frigidaire dishwasher models. Please read these instructions carefully before proceeding with any installation or repair to ensure proper function and safety.
Image: Frigidaire brand logo, indicating the manufacturer of the part.
Tärkeitä turvallisuustietoja
VAROITUS: Before attempting any installation or repair, ensure the dishwasher's power supply is disconnected at the circuit breaker. Failure to do so may result in electrical shock, injury, or death. Always wear appropriate personal protective equipment, such as gloves and eye protection.
This part should only be installed by a qualified technician. Improper installation can lead to product damage, property damage, or personal injury.
Image: A stop sign graphic emphasizing the importance of checking the model number before purchasing or installing replacement parts to ensure compatibility.
Asennus ja asennus
Tarvittavat työkalut:
- Ruuvimeisselisarja (Phillips ja Flathead)
- Pihdit
- Säädettävä jakoavain
- Pyyhkeitä tai sieniä veden imeytymiseen
- Ämpäri
Asennusta edeltävät vaiheet:
- Katkaise virta: Turn off the electrical power to the dishwasher at the household circuit breaker or fuse box.
- Irrota vesijohto: Sulje astianpesukoneen vesihana.
- Valuta vesi: If possible, drain any remaining water from the dishwasher tub.
- Access Dishwasher: Carefully pull the dishwasher out from its cabinet enclosure to access the pump assembly from underneath or the side, depending on the model.
Asennusmenettely:
- Locate Old Pump: Identify the existing circulation pump assembly.
- Irrota letkut ja johdot: Carefully disconnect all hoses and electrical wires attached to the old pump. Note their positions for reassembly.
- Vanhan pumpun irrottaminen: Avaa kaikki soljetamps or screws securing the old pump assembly and remove it.

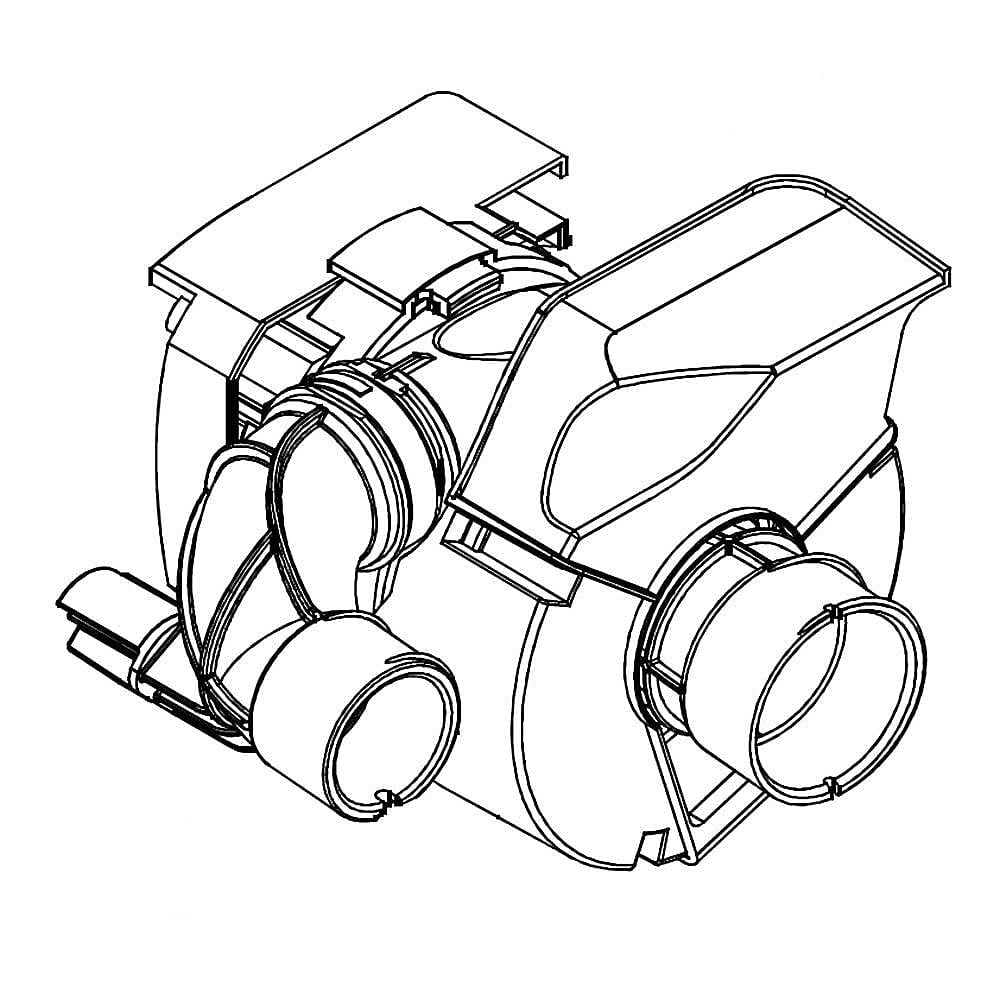

- Asenna uusi pumppu: Position the new Frigidaire A10281701 circulation pump assembly in place. Ensure it is seated correctly.
- Secure New Pump: Fasten the new pump with the appropriate clamps tai ruuveja.
- Reconnect Hoses and Wires: Reconnect all hoses and electrical wires to their correct positions on the new pump. Ensure all connections are secure and watertight.
- Tarkista vuodot: Before fully pushing the dishwasher back, turn on the water supply and check for any leaks around the new pump connections.
- Palauta virta: Kun olet tyytyväinen asennukseen ja vuototarkistukseen, kytke astianpesukoneen sähköt takaisin.
Käyttöohjeet (asennuksen jälkeen)
After successful installation of the Frigidaire A10281701 Dishwasher Circulation Pump, follow these steps to ensure proper operation:
- Initial Test Cycle: Run a short wash cycle without dishes to check for proper water circulation and any unusual noises or leaks.
- Tarkkaile suorituskykyä: During the cycle, listen for the pump operating smoothly. Water should be sprayed effectively throughout the dishwasher tub.
- Tarkista vuodot uudelleen: After the cycle, inspect the area around the pump and connections for any signs of water leakage.
- Normaali käyttö: If no issues are detected, the dishwasher is ready for normal operation.
Huolto
The Frigidaire A10281701 Dishwasher Circulation Pump is designed for durability. Regular maintenance of your dishwasher can help prolong the life of all its components, including the pump.
- Puhtaat suodattimet: Regularly clean the dishwasher's filters to prevent debris from entering the pump and causing blockages or damage.
- Käytä sopivaa pesuainetta: Use only dishwasher-safe detergents in the recommended amounts. Excessive detergent can lead to residue buildup.
- Vältä ylikuormitusta: Do not overload the dishwasher, as this can hinder water circulation and put undue strain on the pump.
- Tarkista roskien varalta: Periodically check the bottom of the dishwasher tub for any foreign objects that could interfere with the pump impeller.
Vianetsintä
If you experience issues after installing the Frigidaire A10281701 Dishwasher Circulation Pump, refer to the following common problems and solutions:
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Dishwasher not circulating water | Pump not receiving power; blockage in pump or hoses; faulty wiring connection. | Check power supply and circuit breaker. Disconnect power and inspect pump impeller and hoses for obstructions. Verify all electrical connections are secure. |
| Loud noise from pump area | Debris in pump impeller; worn bearings (less likely for new pump); improper installation. | Disconnect power and inspect pump for foreign objects. Ensure pump is securely mounted and not vibrating against other components. |
| Vesi vuotaa pumpun alueelta | Löysä letkuamps; damaged seals; improper seating of pump. | Disconnect power and check all hose connections and clamps for tightness. Inspect seals for damage and ensure the pump is correctly seated. |
| Dishes not cleaning properly | Insufficient water pressure from pump; spray arms blocked; incorrect detergent usage. | Ensure pump is operating at full capacity. Clean spray arm nozzles. Review detergent instructions. |
Jos vianmääritysohjeet eivät ratkaise ongelmaa, on suositeltavaa ottaa yhteyttä pätevään kodinkonehuoltoon.
Tekniset tiedot
- Osanumero: A10281701
- Osan tyyppi: Dishwasher Circulation Pump Assembly with Heater
- Merkki: Frigidaire
- Materiaali: Stainless Steel (as per product specifications, likely for internal components or housing)
- Yhteensopivuus: Genuine OEM part for specific Frigidaire dishwasher models. Verify compatibility with your appliance's model number before installation.
Takuu ja tuki
For information regarding the warranty of your Frigidaire A10281701 Dishwasher Circulation Pump, please refer to the documentation provided with your original appliance or contact Frigidaire customer support directly. As an OEM part, its warranty typically aligns with the manufacturer's standard parts warranty.
Frigidaire Customer Support: For technical assistance or to locate authorized service centers, please visit the official Frigidaire website or consult your appliance's user manual for contact information.
Huomautus: Tämä käyttöohje on tarkoitettu vain tiedoksi. Monimutkaisissa korjauksissa ota aina yhteyttä pätevään teknikkoon.
