Black & Decker Air Compressor Manifold Replacement

Johdanto

This manual provides instructions for the installation and maintenance of the OEM 5140228-52 replacement manifold for Black & Decker air compressors. This part is compatible with various models, including D55152, D55155, D55250, D55154, and EM810-4M. Please read these instructions carefully before proceeding with the replacement to ensure safe and correct installation.

Turvallisuustiedot

Always prioritize safety when working with power tools and pressurized systems. Failure to follow these safety guidelines may result in serious injury or property damage.

• Katkaise virta: Before performing any maintenance or installation, ensure the air compressor is unplugged from its power source.
• Paineenpoistojärjestelmä: Completely drain all air pressure from the compressor tank and lines. Open all drain valves and pressure relief valves.
• Käytä suojavarusteita: Käytä asianmukaisia ​​henkilönsuojaimia, mukaan lukien suojalaseja ja -käsineitä.
• Työskentele hyvin ilmastoidussa tilassa: Ensure adequate ventilation if using any solvents or sealants.
• Ota yhteyttä ammattilaiseen: Jos olet epävarma jostakin vaiheesta, ota yhteyttä pätevään teknikkoon.

Pakkauksen sisältö

Varmista avatessasi pakkauksen, että kaikki osat ovat mukana ja ehjät.

• 1 x OEM 5140228-52 Air Compressor Manifold
• (Additional components, if any, will be listed on the product packaging.)

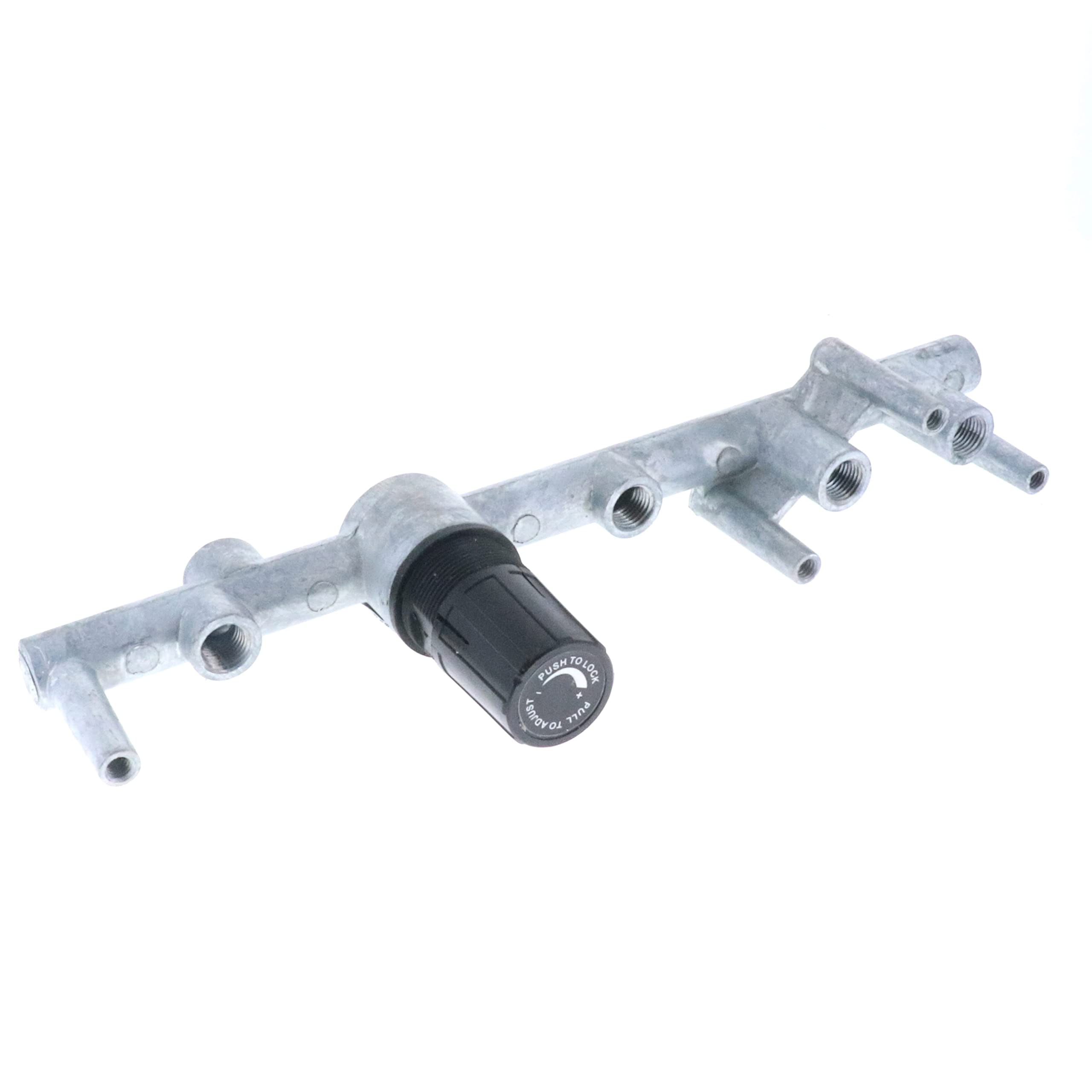

Image: The OEM 5140228-52 replacement manifold for Black & Decker air compressors. This image shows the manifold assembly with various ports and connections.

Asennus

This section outlines the steps for replacing the air compressor manifold. Ensure the compressor is completely depressurized and disconnected from power before beginning.

Tarvittavat työkalut:

• Wrenches (appropriate sizes for fittings)
• Ruuvimeisseli (jos soveltuu asennukseen)
• Thread sealant tape (PTFE tape) or liquid thread sealant
• Suojalasit ja käsineet

Vaiheittainen menettely:

1. Valmistele kompressori: Unplug the compressor from the power outlet. Open the tank drain valve and any other relief valves to completely release all air pressure from the tank and lines.
2. Locate the Manifold: Identify the existing manifold on your Black & Decker air compressor. It typically has multiple gauges, valves, and air outlets connected to it.
3. Irrota komponentit: Carefully disconnect all hoses, gauges, pressure switches, and other components attached to the old manifold. Note their positions for reassembly.
4. Irrota vanha jakotukki: Unscrew or unbolt the old manifold from its mounting points on the compressor.
5. Prepare New Manifold: Apply thread sealant tape (PTFE tape) or liquid thread sealant to the threads of all fittings (gauges, valves, pressure switch, air outlets) that will be installed into the new manifold. Ensure a proper seal to prevent air leaks.
6. Asenna uusi jakotukki: Mount the new 5140228-52 manifold onto the compressor using the original hardware. Ensure it is securely fastened.
7. Yhdistä komponentit uudelleen: Reattach all hoses, gauges, pressure switches, and other components to their corresponding ports on the new manifold. Tighten all connections firmly but avoid over-tightening, which can strip threads or damage components.
8. Tarkista vuodot: Close the tank drain valve. Plug in the compressor and allow it to build pressure. Once it reaches its cut-off pressure, unplug it. Apply a soapy water solution to all new connections. Bubbles indicate an air leak. Tighten any leaking connections until bubbles stop.
9. Testitoiminta: Once all leaks are resolved, the compressor is ready for normal operation.

Toiminta

The manifold itself does not have operational controls; it serves as a distribution and control hub for the air compressor's output. After successful installation, ensure that all gauges read correctly and that air flows as expected through the outlets. Monitor for any unusual noises or pressure fluctuations during initial operation.

Huolto

Regular inspection of the manifold and its connections can help prevent future issues.

• Periodic Leak Checks: Periodically check all connections on the manifold for air leaks using soapy water, especially if you notice a drop in compressor efficiency or increased run time.
• Puhtaus: Keep the manifold free from dirt, dust, and debris to ensure proper function of gauges and valves.
• Komponenttien tarkastus: Inspect gauges, valves, and pressure switches connected to the manifold for signs of wear or damage. Replace any faulty components promptly.

Vianetsintä

If you encounter issues after replacing the manifold, consider the following common problems and solutions:

• Ilmavuotoja:
  • Oire: Hissing sound, compressor runs frequently, pressure drops quickly.
  • Ratkaisu: Re-check all connections with soapy water. Tighten fittings. If a fitting continues to leak, disassemble, reapply thread sealant, and reassemble.
• Virheelliset painelukemat:
  • Oire: Gauges show inconsistent or incorrect pressure.
  • Ratkaisu: Ensure gauges are properly seated and sealed. If the issue persists, the gauge itself may be faulty and require replacement.
• Compressor Not Building Pressure:
  • Oire: Compressor runs but tank pressure does not increase or increases very slowly.
  • Ratkaisu: Check for significant leaks at the manifold or other components. Ensure the pressure switch is correctly connected and functioning.

Tekniset tiedot

Takuutiedot

Warranty terms for this replacement part may vary depending on the seller and purchase date. Please refer to your purchase documentation or contact the seller directly for specific warranty details.

Asiakastuki

For further assistance or technical support, please contact the retailer or the manufacturer of your Black & Decker air compressor. When contacting support, please have your compressor model number and the part number (5140228-52) available.
