1. Johdanto
Thank you for choosing the Arrow Fastener ET200BN Electric Brad Nailer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before using the product and keep it for future reference.

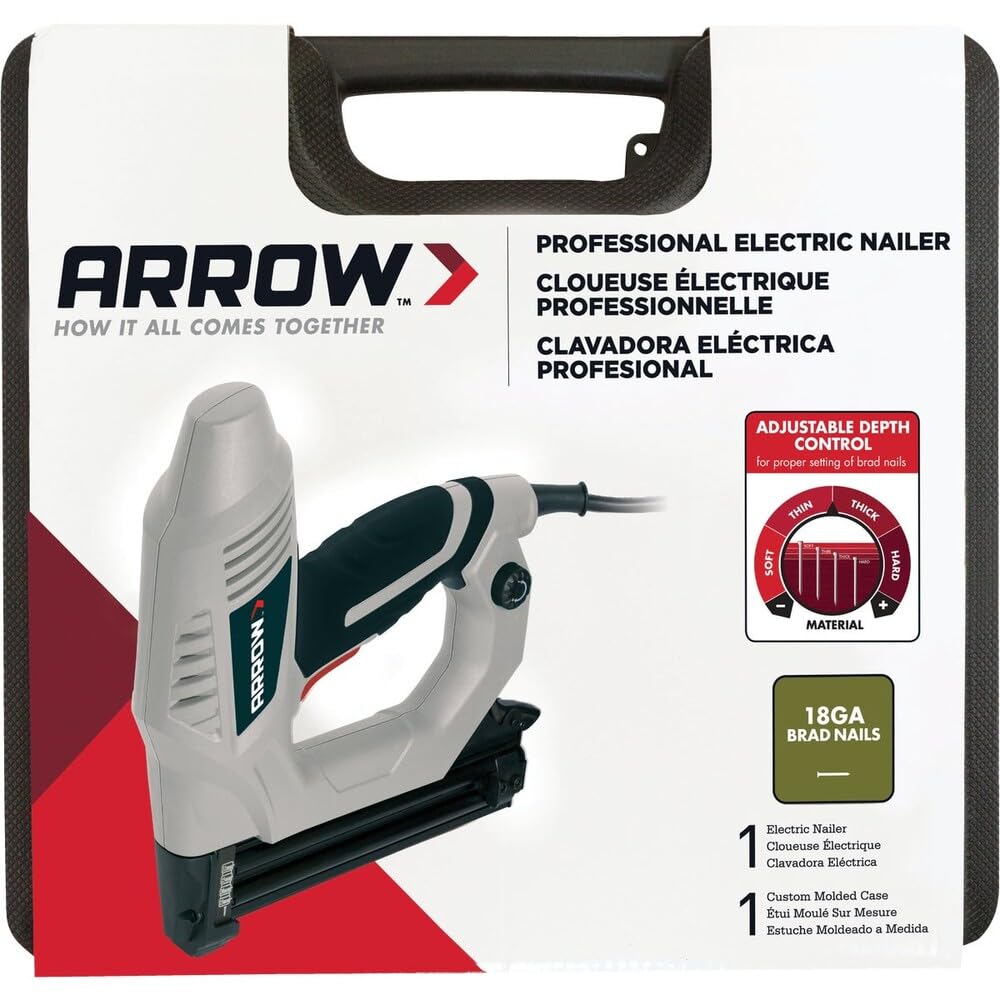

Figure 1: The Arrow Fastener ET200BN Electric Brad Nailer, showing its ergonomic design and power cord.
2. Turvallisuusohjeet
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using this tool.
- Lue kaikki ohjeet: Tutustu työkalun toimintaan ja mahdollisiin vaaroihin.
- Käytä suojalaseja: Always wear safety glasses or goggles that comply with ANSI Z87.1.
- Käytä kuulosuojaimia: Pitkäaikainen altistuminen melulle voi aiheuttaa kuulovaurioita.
- Pidä työalue puhtaana: Sotkuiset alueet aiheuttavat onnettomuuksia.
- Älä käytä räjähdysvaarallisissa tiloissa: Älä käytä työkalua syttyvien nesteiden, kaasujen tai pölyn läsnä ollessa.
- Työkappaleen kiinnittäminen: Always secure the material you are working on.
- Avoid accidental firing: Keep fingers away from the trigger when not actively fastening.
- Katkaise virta: Always unplug the tool before clearing jams, performing maintenance, or when not in use.
- Use correct fasteners: Only use 18 Ga. brad nails from 5/8" to 1-1/4" as specified for this model.
- Tarkista työkalu ennen käyttöä: Tarkista vaurioituneet osat, virheellinen kohdistus tai muut toimintahäiriöt.
3. Pakkauksen sisältö
Varmista, että pakkauksessasi on kaikki alla luetellut tuotteet:
- Arrow Fastener ET200BN Electric Brad Nailer
- Säilytyskotelo
- Käyttöohje
4. Tuotteen ominaisuudet
The Arrow Fastener ET200BN Electric Brad Nailer is designed for various fastening tasks, offering convenience and precision.
- Adjustable Impact Control Nozzle: Allows for precise setting of brad nails.
- Fastener Compatibility: Fires 18 Ga. brad nails from 5/8" to 1-1/4" (e.g., BN1810, BN1812, BN1816, BN1820).
- Kevyt muotoilu: Parantaa käyttömukavuutta ja vähentää väsymystä pitkäaikaisessa käytössä.
- Overmold Comfort Grip: Provides a secure and comfortable hold.
- Easy Access Magazine Release: Facilitates quick and efficient reloading of brad nails.
- Kestävä rakenne: Made in Taiwan, ensuring quality and reliability.
Kuva 2: Lähikuva view of the ET200BN, highlighting the adjustable impact control nozzle and comfort grip.
5. Asennus
5.1 Brad-naulojen lataaminen
- Varmista, että työkalu on irrotettu virtalähteestä.
- Locate the easy access magazine release button, typically near the base of the handle.
- Press the magazine release button and pull the magazine open.
- Insert a strip of 18 Ga. brad nails into the magazine with the points facing forward.
- Slide the magazine closed until it locks securely.
5.2 Adjusting Impact Control
The adjustable impact control nozzle allows you to control the depth at which the brad nails are driven. Turn the knob clockwise for deeper penetration and counter-clockwise for shallower penetration. Test on a scrap piece of material to achieve the desired depth.
6. Käyttöohjeet
6.1 Yleinen käyttö
- Ensure the tool is loaded with the correct brad nails and the impact control is set.
- Plug the tool into a suitable 14A power outlet.
- Place the nose of the nailer firmly against the workpiece where you want to drive a nail. Ensure the tool is held perpendicular to the surface.
- Press the trigger to fire a brad nail. The tool will drive the nail and reset for the next shot.
- Vapauta liipaisin jokaisen laukauksen jälkeen.
- When finished, unplug the tool from the power source.
6.2 Parhaat käytännöt
- Always test the nailer on a scrap piece of material before working on your main project.
- Maintain a firm grip on the tool and apply consistent pressure to the workpiece.
- Avoid firing into knots or extremely hard materials, which can cause jams or damage to the tool.
- Do not attempt to drive nails into metal or concrete.
7. Huolto
Regular maintenance ensures the longevity and optimal performance of your ET200BN Electric Brad Nailer.
- Puhdistus: Pidä työkalu puhtaana ja vapaana pölystä ja roskista. Pyyhi ulkopinta kuivalla liinalla. Älä käytä liuottimia.
- Voitelu: The tool is designed for maintenance-free operation regarding lubrication. Do not apply oil to the internal mechanisms unless specifically instructed by Arrow Fastener.
- Johdon tarkastus: Regularly inspect the power cord for any signs of damage, cuts, or fraying. Replace a damaged cord immediately.
- Varastointi: Store the tool in its included storage case in a dry, secure location, out of reach of children.
8. Vianmääritys
Before attempting any repairs, always unplug the tool from the power source.
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Työkalu ei laukea. | Not plugged in; no nails in magazine; safety mechanism not engaged; internal fault. | Check power connection; load nails; ensure nose is pressed firmly against workpiece; contact customer support if problem persists. |
| Kynnet jumittuvat usein. | Incorrect nail size; damaged nails; magazine issue; firing into hard material. | Use correct 18 Ga. brad nails (5/8" to 1-1/4"); inspect nails for damage; clear jam (unplug first); avoid knots/hard materials. |
| Nails not driven flush. | Impact control set too low; insufficient pressure on tool; material too dense. | Adjust impact control knob clockwise; apply more firm pressure to the tool; consider a different fastening method for very dense materials. |
9. Tekniset tiedot
| Ominaisuus | Yksityiskohta |
|---|---|
| Mallinumero | ET200BN |
| Kiinnittimen tyyppi | 18-kaliiperiset Brad-naulat |
| Fastener Lengths | 5/8" to 1-1/4" (BN1810, BN1812, BN1816, BN1820) |
| Virtalähde | Electric (14A) |
| Tuotteen mitat | 13.3 x 3.4 x 12.6 tuumaa |
| Tuotteen paino | 6 kiloa |
| Valmistaja | Nuolikiinnike |
| Paristot vaaditaan | Ei |
10. Takuu ja tuki
For warranty information, please refer to the documentation included with your purchase or visit the official Arrow Fastener website. If you require technical assistance, replacement parts, or have questions regarding the operation of your ET200BN Electric Brad Nailer, please contact Arrow Fastener customer support directly.
Valmistaja: Nuolikiinnike
Websivusto: www.arrowfastener.com (Esimamplinkki, todellinen linkki voi vaihdella)
