All States Engine Oil Cooler Instruction Manual

1. Johdanto

This instruction manual provides essential information for the proper installation, operation, and maintenance of your All States Engine Oil Cooler, Model 123952. To ensure optimal performance and longevity of the product, please read this manual thoroughly before proceeding with any procedures. This oil cooler is designed for specific John Deere equipment models to maintain engine oil temperature within optimal ranges, contributing to engine efficiency and lifespan.

2. Tuote ohiview

The All States Engine Oil Cooler (Model 123952) is a critical component designed to regulate the temperature of engine oil. It features a robust construction with 7 cooling plates, engineered for efficient heat exchange. This unit is a direct replacement for John Deere OEM part numbers RE56690 and RE560752.

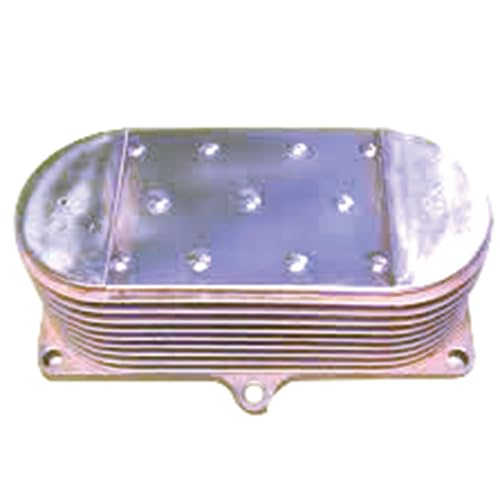

Image: All States Engine Oil Cooler, Model 123952. This image displays the compact unit with its multiple cooling plates and integrated mounting points. The package includes necessary gaskets and O-rings for a complete installation.

Tärkeimmät ominaisuudet:

• 7 Cooling Plates for efficient heat dissipation.
• Includes Gasket and O-Rings for a complete seal.
• Direct replacement for John Deere OEM part numbers RE56690, RE560752.
• Dimensions: Overall Height: 1-29/32", Overall Length: 6-3/4", Overall Width: 4-1/4".

3. Turvallisuustiedot

WARNING: Always prioritize safety when working with machinery and engine components. Failure to follow safety precautions can result in serious injury or damage to equipment.

• Ensure the engine is completely cool and turned off before beginning any installation or maintenance.
• Irrota akku vahingossa tapahtuvan käynnistymisen estämiseksi.
• Käytä asianmukaisia ​​henkilönsuojaimia, mukaan lukien suojalasit ja -käsineet.
• Be aware of hot surfaces and fluids. Engine oil can be hot and cause burns.
• Properly dispose of old engine oil and coolant according to local regulations.
• If you are unsure about any step, consult a qualified mechanic or service professional.

4. Asennus ja asennus

Installation of the engine oil cooler requires mechanical aptitude and specific tools. It is highly recommended that installation be performed by a certified technician to ensure correct fitment and function.

General Installation Steps (Consult your equipment's service manual for specific procedures):

1. Valmistelu: Park the equipment on a level surface, engage the parking brake, and block the wheels. Allow the engine to cool completely.
2. Tyhjennä nesteet: Drain the engine oil and, if necessary, the coolant from the system.
3. Pääsy: Locate the existing oil cooler assembly. This may require removing other components to gain access.
4. Removal of Old Cooler: Carefully disconnect any hoses or lines attached to the old oil cooler. Remove the mounting bolts and detach the old cooler. Be prepared for residual fluid leakage.
5. Puhdas asennuspinta: Thoroughly clean the mounting surface on the engine block or housing to ensure a proper seal with the new cooler. Remove any old gasket material.
6. Install New Cooler: Apply the new gaskets and O-rings (included) to the new All States oil cooler. Position the new cooler and secure it with the mounting bolts. Tighten bolts to the manufacturer's specified torque settings (refer to your equipment's service manual).
7. Yhdistä linjat uudelleen: Reconnect all oil and coolant lines to the new cooler, ensuring they are securely fastened and free from kinks.
8. Täyttönesteet: Refill the engine with the appropriate type and amount of engine oil and coolant.
9. Tarkista vuodot: Start the engine and allow it to reach operating temperature. Carefully inspect all connections around the new oil cooler for any signs of leaks.
10. Lopputarkastus: Turn off the engine, allow it to cool, and recheck fluid levels. Top up if necessary.

Huomautus: Always refer to the specific service manual for your John Deere equipment model for detailed, step-by-step instructions and torque specifications.

5. Käyttöohjeet

The All States Engine Oil Cooler operates automatically as part of your engine's lubrication and cooling system. Once properly installed, it requires no direct user interaction during operation. Its function is to continuously regulate the engine oil temperature by transferring excess heat to the engine's coolant system.

Toiminnalliset näkökohdat:

• Moottorin lämpötilan valvonta: Always monitor your equipment's engine temperature gauge during operation. Abnormal temperature readings may indicate an issue with the cooling system, including the oil cooler.
• Säännölliset nestetarkastukset: Ensure engine oil and coolant levels are maintained at recommended levels. Low fluid levels can impair the oil cooler's effectiveness.
• Kuuntele epätavallisia ääniä: Any new or unusual noises from the engine area should be investigated promptly.

6. Huolto

Regular maintenance is crucial for the longevity and efficient operation of your engine oil cooler and the overall engine system.

Suositeltu huolto:

• Säännöllinen tarkastus: During routine engine service, visually inspect the oil cooler for signs of external damage, corrosion, or leaks. Check the integrity of hoses and connections.
• Gasket and O-Ring Integrity: Over time, gaskets and O-rings can degrade. If leaks are detected, replace the seals immediately.
• Internal Cleaning (Professional): In some cases, internal passages of the oil cooler can become clogged with debris or sludge, reducing efficiency. This typically requires professional servicing and specialized cleaning procedures.
• Jäähdytysnesteen laatu: Ensure the engine coolant is clean and at the correct concentration. Contaminated or old coolant can lead to corrosion and reduced heat transfer efficiency.
• Öljyn laatu: Use recommended engine oil and adhere to oil change intervals. Dirty or degraded oil can contribute to internal clogging of the cooler.

7. Vianmääritys

If you experience issues with your engine's oil temperature, consider the following troubleshooting steps. Always consult your equipment's service manual for detailed diagnostic procedures.

If the problem persists after attempting these solutions, it is recommended to seek professional assistance.

8. Tekniset tiedot

9. Takuutiedot

For specific warranty terms and conditions pertaining to your All States Engine Oil Cooler (Model 123952), please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty coverage typically includes defects in materials and workmanship under normal use and service.

Säilytä ostokuittisi mahdollisten takuuvaatimusten varalta.

10. Tukea

If you require further assistance, have questions regarding installation, or need to report a product issue, please contact your authorized All States dealer or the retailer from whom you purchased this product. When contacting support, please have your product model number (123952) and proof of purchase readily available.

For general inquiries or to find a dealer, you may visit the official All States website (if available) or search for authorized distributors in your region.
