Norifon CGA-S002 USB Charger Instruction Manual

1. Johdanto

This manual provides instructions for the Norifon CGA-S002 USB Charger. This compact and lightweight charger is designed for convenient charging of compatible camera batteries via a USB power source. Please read this manual thoroughly before use to ensure proper operation and safety.

Image: Norifon CGA-S002 USB Charger. This image shows the compact design of the charger.

2. Yhteensopivuus

The Norifon CGA-S002 USB Charger is compatible with a range of Panasonic camera batteries. To ensure correct usage, verify that your battery model is listed below. The battery model number is typically found on the battery's label, not the camera itself.

Yhteensopivat akkumallit:

• BP-DC5 J, BP-DC5 U
• CGA-S002, CGA-S002A, CGA-S002A/1B, CGA-S002E, CGA-S002E/1B
• CGA-S006, CGA-S006A, CGA-S006E, CGA-S006E/1B
• CGR-S002, CGR-S002E
• CGR-S006, CGR-S006A/1B, CGR-S006E, CGR-S006E/1B, CGR-S006GK
• DMW-BM7, DMW-BMA7

Yhteensopivat kameramallit:

• Panasonic Lumix DMC-FZ1, DMC-FZ2, DMC-FZ3, DMC-FZ4, DMC-FZ5, DMC-FZ7, DMC-FZ8, DMC-FZ10, DMC-FZ15, DMC-FZ18, DMC-FZ20, DMC-FZ28, DMC-FZ30, DMC-FZ35, DMC-FZ38, DMC-FZ50

Image: Guide on how to identify the battery code on your battery to ensure compatibility with the charger.

3. Asennus

The Norifon USB Charger is designed for versatile power input, allowing you to charge your batteries from various USB sources.

Laturin liittäminen:

1. Ensure the battery and charger contacts are aligned correctly (+ to + and - to -).
2. Insert the battery into the charger slot.
3. Connect the charger to a USB power source using a compatible USB cable. The charger features a Type-C USB port for input.

Kuva: Lähikuva view of the USB Type-C port on the charger, indicating the connection point.

Image: Illustration showing the charger being powered by a PC, AC charger, car charger, or power bank.

4. Käyttö

Once the battery is correctly inserted and the charger is connected to a power source, the charging process will begin automatically. The charger features an LED indicator to display the charging status.

Lataustilan ilmaisin:

• Punainen valo: Ilmaisee, että akku latautuu parhaillaan.
• Sininen valo: Indicates that the battery is fully charged or no battery is inserted (no load).

Image: The charger's LED indicator showing a red light when charging and a blue light when charging is complete or no battery is present.

5. Huolto

To ensure the longevity and optimal performance of your Norifon USB Charger, follow these simple maintenance guidelines:

• Pidä laturi puhtaana pölystä ja roskista. Käytä puhdistamiseen pehmeää, kuivaa liinaa.
• Säilytä laturia kuivassa paikassa, kun sitä ei käytetä.
• Vältä altistamasta laturia äärimmäisille lämpötiloille tai suoralle auringonvalolle.
• Älä upota laturia veteen tai muihin nesteisiin.

6. Vianmääritys

If you encounter issues with your charger, consider the following common troubleshooting steps:

• Charger not lighting up: Ensure the USB cable is securely connected to both the charger and the power source. Try a different USB cable or power source.
• Battery not charging (blue light immediately): Verify that the battery is correctly inserted and its contacts are clean. Confirm that the battery model is compatible with the charger.
• Hidas lataus: Ensure your USB power source provides sufficient current (e.g., a wall adapter rather than a low-power USB port on an older computer).

If problems persist, please refer to the support information provided with your purchase.

7. Tekniset tiedot

Technical details for the Norifon CGA-S002 USB Charger:

Image: The back label of the Norifon USB Charger, displaying input and output specifications.

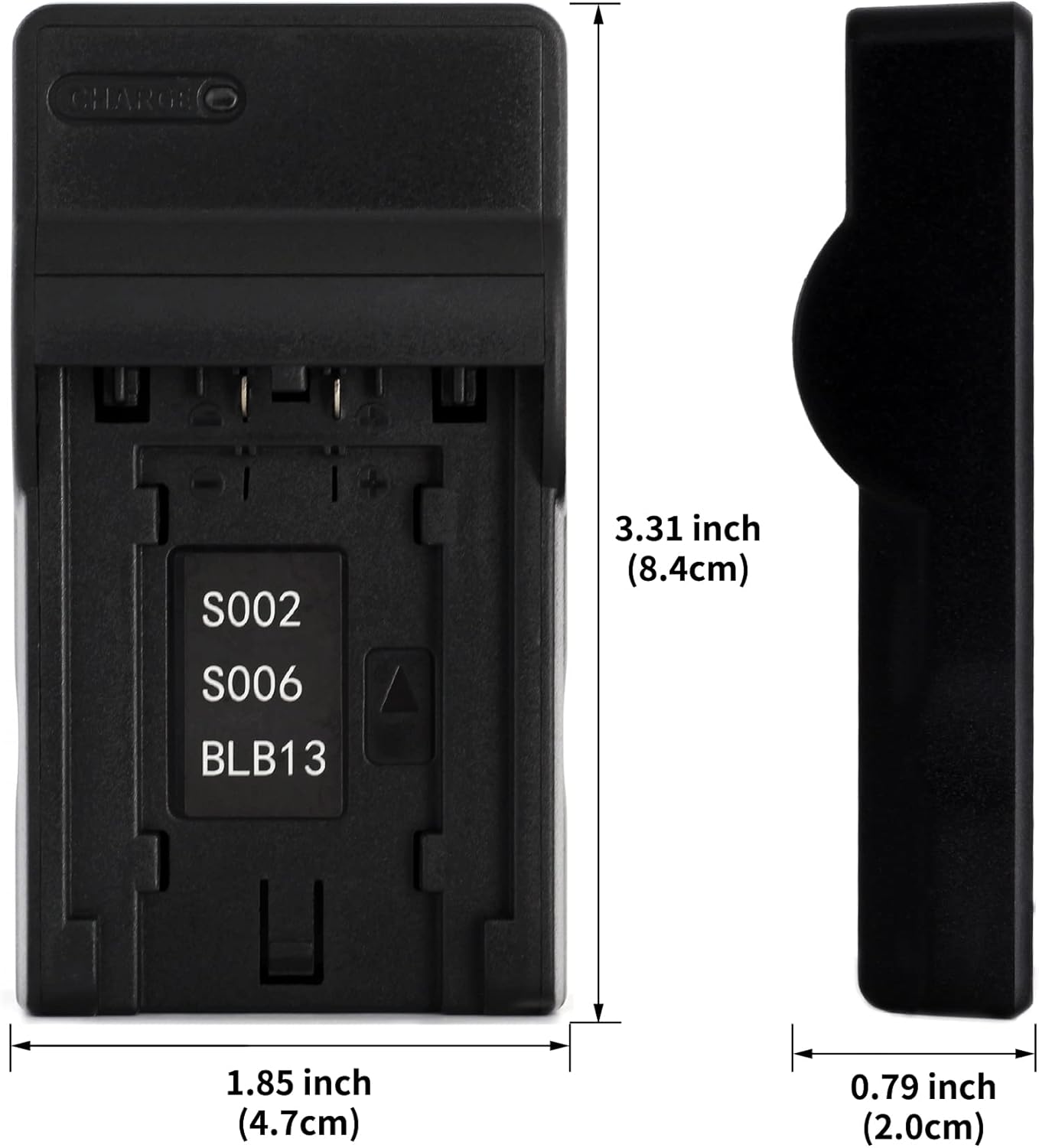

Image: Dimensions of the Norifon USB Charger, showing its compact size (3.31 inches height, 1.85 inches width, 0.79 inches thickness).

8. Turvallisuustiedot

Please observe the following safety precautions to prevent damage to the charger, battery, or personal injury:

• Älä avaa tai muuta laturia.
• Do not immerse the charger in water or expose it to rain or moisture.
• Use the charger only in dry locations.
• Use only compatible batteries with this charger.
• Pidä poissa lasten ulottuvilta.
• Irrota laturi virtalähteestä, kun se ei ole käytössä.

9. Takuu ja tuki

Norifon products are designed for reliability and performance. For warranty information or technical support, please refer to the documentation included with your purchase or contact Norifon customer service through the retailer where the product was purchased.
