Blue Octave Home 2.1-kanavainen kotiteatterikaiutinjärjestelmä B22 Käyttöohje

Johdanto

This manual provides essential information for the proper setup, operation, and maintenance of your Blue Octave Home 2.1-Channel Home Theater Speaker System, Model B22. Please read these instructions thoroughly before using the product to ensure optimal performance and longevity.

Pakkauksen sisältö

Varmista, että pakkauksessasi on kaikki alla luetellut tuotteet:

  • 1 x subwoofer
  • 2 x satelliittikaiutinta
  • 1 x 3.5mm Aux to RCA Cable
  • 1 x RCA-RCA-kaapeli
  • 1 x kaukosäädin
  • 1 x Käyttöohje (tämä asiakirja)
Blue Octave Home B22 Speaker System Package Contents: Remote control, 3.5mm to RCA cable, and RCA to RCA cable.
Image: Included accessories such as the remote control and various audio cables.

Tuotteen ominaisuudet

  • 350 Watts System Power: Delivers robust audio output.
  • Frequency Response: 40Hz - 20KHz for a wide range of sound.
  • Magnetically Shielded: Reduces interference with other electronic devices.
  • Sisäänrakennettu ääni Amplifier: Integrated amplification for convenience.
  • Ultimate Bass Boost Design: Enhanced low-frequency performance.
  • Digitally Designed Port: Optimized for extra bass response.
  • Rear Bass Control Knob: Allows adjustment of bass levels.
  • Computerized Enclosure Design: Engineered for acoustic precision.
  • Plug and Play Connections: Simple setup for various audio sources.
  • Full Function Remote Control: Convenient wireless operation.
  • Versatile Connectivity: Compatible with 3.5mm headphone output or RCA audio output devices.

Asennusohjeet

Asenna kaiutinjärjestelmäsi seuraavasti:

  1. Sijoitus: Position the subwoofer on a stable surface, preferably on the floor, for optimal bass. Place the two satellite speakers equidistant from your listening position, facing towards you. Ensure adequate ventilation around the subwoofer.
  2. Satelliittikaiuttimien liittäminen: Connect the RCA cables from the satellite speakers to the 'OUTPUT INPUT' RCA jacks on the rear of the subwoofer. Ensure the left (white) and right (red) channels are matched correctly.
  3. Liitä äänilähde:
    • For devices with a 3.5mm headphone jack (e.g., computer, smartphone, tablet): Use the provided 3.5mm Aux to RCA cable. Connect the 3.5mm end to your device's headphone jack and the RCA ends to the 'INPUT' RCA jacks on the rear of the subwoofer.
    • For devices with RCA audio outputs (e.g., TV, DVD player): Use the provided RCA to RCA cable. Connect one end to your device's audio output and the other end to the 'INPUT' RCA jacks on the rear of the subwoofer.
  4. Virtaliitäntä: Ensure the power switch on the rear of the subwoofer is in the 'OFF' position. Plug the subwoofer's power cord into a standard AC power outlet.
  5. Virta päälle: Flip the power switch on the rear of the subwoofer to the 'ON' position. The system is now ready for operation.
Blue Octave Home B22 2.1 Speaker System with subwoofer, two satellite speakers, and remote control.
Image: The complete Blue Octave Home B22 2.1 speaker system.
Rear panel of the Blue Octave Home B22 subwoofer showing power switch, AC input, bass control, antenna, and RCA input/output jacks.
Image: Rear panel connections of the subwoofer, including power, bass control, and audio inputs/outputs.

Käyttöohjeet

Virta päälle/pois

To power on the system, ensure the rear power switch is 'ON', then press the power button on the front panel of the subwoofer or on the remote control. Press again to power off.

Äänenvoimakkuuden säätö

Adjust the master volume using the large rotary knob on the front of the subwoofer or the 'VOL+' and 'VOL-' buttons on the remote control.

Tulon valinta

Press the 'SOURCE' button on the front panel of the subwoofer or the corresponding input buttons (AUX, FM, USB, SD) on the remote control to switch between audio sources.

Basson säätö

The bass level can be fine-tuned using the 'BASS' control knob located on the rear panel of the subwoofer.

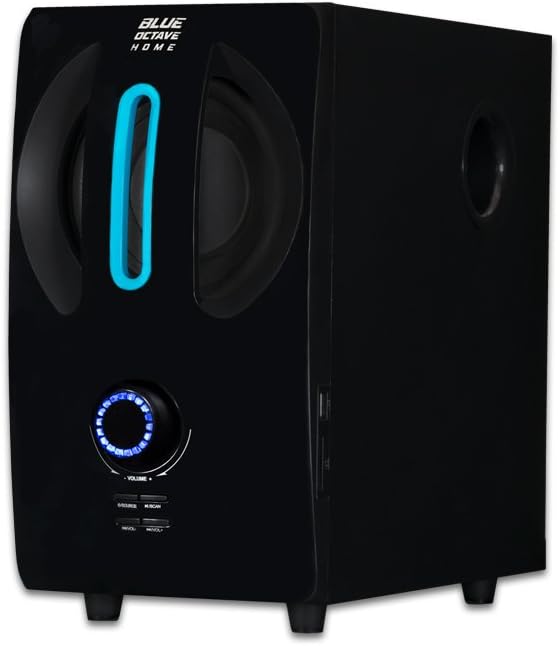

Front panel of the Blue Octave Home B22 subwoofer showing volume knob, source button, and display.
Image: Front panel controls of the subwoofer for volume and source selection.
Blue Octave Home B22 remote control with buttons for power, source, volume, EQ, and track navigation.
Image: The full-function remote control for convenient system operation.

Huolto

Kaiutinjärjestelmän pitkän käyttöiän ja optimaalisen suorituskyvyn varmistamiseksi noudata näitä huolto-ohjeita:

  • Puhdistus: Use a soft, dry cloth to clean the surfaces of the speakers and subwoofer. Avoid using liquid cleaners, aerosols, or abrasive materials, as they may damage the finish or internal components.
  • Ilmanvaihto: Ensure that the subwoofer's ventilation ports are not blocked. Proper airflow prevents overheating.
  • Varastointi: Jos järjestelmää säilytetään pitkään, irrota se virtalähteestä ja säilytä sitä viileässä, kuivassa paikassa, poissa suorasta auringonvalosta ja äärimmäisistä lämpötiloista.
  • Kaapelihuolto: Avoid bending or crimping the audio and power cables excessively. Regularly check cables for any signs of wear or damage.

Vianetsintä

Jos kaiutinjärjestelmässäsi on ongelmia, katso seuraavat yleiset ongelmat ja ratkaisut:

OngelmaMahdollinen syyRatkaisu
Kaiuttimista ei kuulu ääntä
  • Virtaa ei ole kytketty tai se ei ole päällä.
  • Väärä äänilähde valittu.
  • Äänenvoimakkuus liian pieni.
  • Audio cables loose or incorrectly connected.
  • Lähdelaite ei toista ääntä.
  • Check power switch and power outlet.
  • Press 'SOURCE' button to select correct input.
  • Lisää päävoimakkuutta.
  • Tarkista kaikkien äänikaapelien liitännät.
  • Ensure your source device is playing audio and its volume is up.
Vääristynyt tai epäselvä ääni
  • Äänenvoimakkuus on asetettu liian korkealle.
  • Huonolaatuinen äänilähde.
  • Löysät kaapeliliitännät.
  • Vähennä äänenvoimakkuutta.
  • Kokeile toista äänilähdettä.
  • Tarkista kaikki äänikaapeliliitännät.
Kaukosäädin ei toimi
  • Paristot ovat tyhjiä tai väärin asennettuja.
  • Obstruction between remote and subwoofer.
  • Vaihda paristot ja varmista oikea napaisuus.
  • Remove any obstructions and ensure direct line of sight to the subwoofer's sensor.

Tekniset tiedot

Detailed technical specifications for the Blue Octave Home B22 Speaker System:

  • Mallin nimi: B22
  • Kaiuttimen tyyppi: Computer, Satellite, Subwoofer
  • Yhteensopivat laitteet: Pöytätietokone, Kannettava tietokone, MP3-soitin, Älypuhelin, Tabletti, Televisio
  • Subwoofer Dimensions (H x W x D): 12.38 cm x 6.75 cm x 13.25 cm
  • Satellite Speaker Dimensions (H x W x D): 6.75" x 4.125" x 4.5" each
  • Surround-äänikanavan asetukset: 2.1
  • Väri: Musta
  • Tuotteen paino: 11 puntaa
  • Valvontamenetelmä: Kaukosäädin, manuaaliset nupit
  • Virtalähde: Johdollinen sähkö
  • Kaiuttimen suurin lähtöteho: 350 wattia
  • Yhteystekniikka: Auxiliary (3.5mm, RCA)
  • Äänilähtötila: Stereot
  • UPC: 849155039776
Diagram showing the dimensions of a Blue Octave Home satellite speaker: 6.75 inches high, 4.125 inches wide, and 4.5 inches deep.
Image: Dimensions of a satellite speaker.

Takuu ja tuki

This Blue Octave Home 2.1-Channel Home Theater Speaker System, Model B22, comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included in your product packaging or contact Blue Octave Home customer support.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Blue Octave Home customer support through their official websivustolla tai ostodokumentaatiossasi annetuissa yhteystiedoissa.
