1. Johdanto
Thank you for choosing the Jocca 6579 Window Vacuum Cleaner ABS. This device is designed to simplify the cleaning of windows, mirrors, tiles, and other smooth surfaces, providing a streak-free finish. Its cordless design and rechargeable battery offer convenience and efficiency. Please read this manual carefully before first use to ensure proper operation, maintenance, and safety.
2. Turvallisuusohjeet
Noudata aina seuraavia turvaohjeita välttääksesi loukkaantumiset tai laitteen vaurioitumisen:
- Lue kaikki ohjeet ennen laitteen käyttöä.
- Pidä laite poissa lasten ulottuvilta.
- Älä upota laitetta veteen tai muihin nesteisiin.
- Käytä ainoastaan laitteen mukana toimitettua alkuperäistä laturia.
- Do not use the appliance on hot surfaces or to vacuum flammable liquids.
- Ensure the water tank is correctly installed before operation.
- Do not operate the appliance if it is damaged. Contact customer support.
- Tämä laite on tarkoitettu vain kotitalouskäyttöön.
3. Pakkauksen sisältö
Varmista, että pakkauksessa on kaikki tarvittavat osat:
- Jocca 6579 Window Vacuum Cleaner ABS unit
- Latausadapteri
- Veden keräysastia
- Käyttöohje
4. Tuote ohiview
Familiarize yourself with the components of your Jocca Window Vacuum Cleaner.

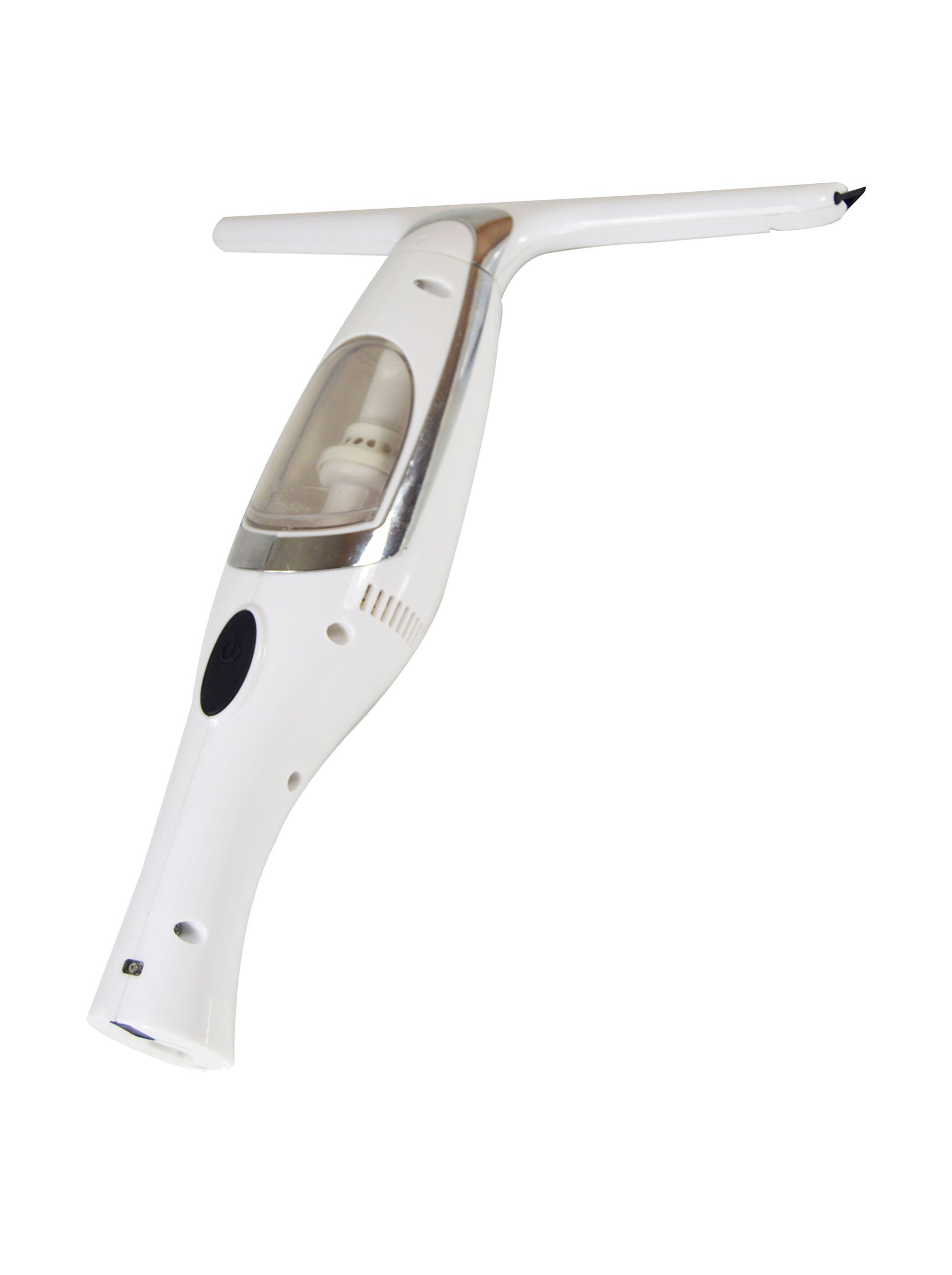

Kuva 4.1: Main unit of the Jocca 6579 Window Vacuum Cleaner. This image shows the complete assembled device, highlighting its ergonomic handle and the suction head.
Keskeisiä komponentteja ovat:
- Imusuutin
- Rubber Blade
- Vedenkeräyssäiliö
- Virtapainike
- Latausportti
- Kahva
5. Asennus
5.1. Alkulataus
Before first use, fully charge the device. Connect the charging adapter to the charging port on the unit and plug it into a power outlet (100-240V ~ 50/60Hz). The charging indicator light will illuminate. Charging typically takes approximately 3-4 hours. Disconnect the charger once fully charged.
Note: An image showing the charging process would typically be included here.
5.2. Assembling the Water Tank
Ensure the water collection tank is securely attached to the main unit. Refer to the product overview for the correct placement.
6. Käyttöohjeet
Follow these steps for effective window cleaning:
- Valmistele pinta: Spray the surface to be cleaned with a suitable window cleaning solution.
- Aktivoi laite: Press the power button to turn on the window vacuum cleaner.
- Puhdista pinta: Place the rubber blade firmly against the top of the wet surface. Glide the device downwards in straight, overlapping strokes. The vacuum will suction the dirty water into the collection tank.
- Overlap Strokes: For best results, overlap each stroke slightly to avoid leaving streaks.
- Sammuta: Kun puhdistus on valmis, sammuta laite painamalla virtapainiketta uudelleen.
7. Huolto ja puhdistus
Regular maintenance ensures optimal performance and extends the life of your device.
7.1. Vesisäiliön tyhjennys
After each use, or when the tank is full, empty the dirty water. The water tank is designed for easy removal and cleaning.
- Sammuta laite.
- Detach the water collection tank from the main unit.
- Kaada likainen vesi pois.
- Huuhtele säiliö puhtaalla vedellä.
- Reattach the dry tank securely to the main unit.
7.2. Cleaning the Rubber Blade
Wipe the rubber blade with a damp cloth after each use to remove any residue and ensure effective suction.
7.3. Pääyksikön puhdistus
Pyyhi laitteen ulkopuoli pehmeällä, damp liinalla. Älä käytä hankaavia puhdistusaineita äläkä upota pääyksikköä veteen.
8. Varastointi
When not in use, store the Jocca Window Vacuum Cleaner in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the device is clean and the water tank is empty before storage.
9. Vianmääritys
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Laite ei käynnisty. | Akku on tyhjä. | Lataa akku täyteen. |
| Huono imuteho. | Water tank is full or improperly attached. Rubber blade is dirty or damaged. | Empty and reattach the water tank. Clean or replace the rubber blade. |
| Leaves streaks on surface. | Rubber blade is dirty or worn. Insufficient cleaning solution. | Clean or replace the rubber blade. Apply more cleaning solution. |
Jos ongelma jatkuu näiden ratkaisujen kokeilemisen jälkeen, ota yhteyttä asiakastukeen.
10. Tekniset tiedot
| Merkki | Jocca |
| Mallinumero | 6579 |
| Mitat (P x L x K) | 13.5 x 12 x 35 cm |
| Paino | 508 grammaa |
| Materiaali | Muovi |
| Voitage | 100-240 V ~ 50 / 60 Hz |
| Akun tyyppi | 1 litiumioniakku (sisältyy toimitukseen) |
| Energialuokka | A+++ |
11. Takuu ja tuki
This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official Jocca website. For technical support, spare parts, or service inquiries, please contact Jocca customer service through their official channels.
Note: Information regarding specific warranty duration or direct contact details is not provided in the product data.
