1. Johdanto

Kiitos ostoksestasiasing the Tangent EVO E10 SUB 150W Subwoofer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new subwoofer. Please read these instructions thoroughly before using the product and retain them for future reference.

The Tangent EVO E10 SUB is designed to enhance your audio system by reproducing low-frequency sounds, adding depth and impact to music, movies, and games. Its powerful 150W amplifier and 10-inch driver deliver robust bass performance.

2. Tärkeitä turvallisuusohjeita

• Virtalähde: Liitä subwoofer vain pistorasiaan, jonka äänenvoimakkuus ontage ilmoitettu takapaneelissa.
• Ilmanvaihto: Ensure adequate ventilation around the unit. Do not block ventilation openings. Avoid placing the subwoofer in an enclosed cabinet without proper airflow.
• Vesi ja kosteus: Älä altista subwooferia sateelle, kosteudelle, tippuvalle vedelle tai roiskeille. Älä aseta nesteillä täytettyjä esineitä, kuten maljakoita, laitteen päälle.
• Lämpö: Pidä subwoofer poissa lämmönlähteistä, kuten pattereista, lämmönlähteistä, liesistä tai muista laitteista (mukaan lukien ampnostimet), jotka tuottavat lämpöä.
• Puhdistus: Irrota laite pistorasiasta ennen puhdistamista. Käytä vain pehmeää, kuivaa liinaa. Älä käytä nestemäisiä puhdistusaineita tai aerosolipuhdistusaineita.
• Huolto: Älä yritä huoltaa tätä tuotetta itse. Anna kaikki huoltotoimenpiteet pätevän huoltohenkilöstön tehtäväksi.
• Sijoitus: Place the subwoofer on a stable, level surface to prevent it from falling. Avoid placing it near strong magnetic fields.
• Virtajohdon suojaus: Suojaa virtajohtoa kävelemiseltä tai puristumiselta, erityisesti pistokkeiden, pistorasian kohdalta ja kohdasta, jossa ne tulevat ulos laitteesta.

3. Pakkauksen sisältö

Tarkista, että pakkauksessa on kaikki tarvittavat osat:

• Tangent EVO E10 SUB Subwoofer Unit
• Virtakaapeli
• Käyttöopas (tämä asiakirja)

Jos jokin osa puuttuu tai on vaurioitunut, ota välittömästi yhteyttä jälleenmyyjään.

4. Tuote ohiview

The Tangent EVO E10 SUB features a robust enclosure housing a 10-inch driver and a powerful amplifier. The front panel is typically covered by a removable grille, protecting the speaker cone. The rear panel contains all input/output connections and control knobs.

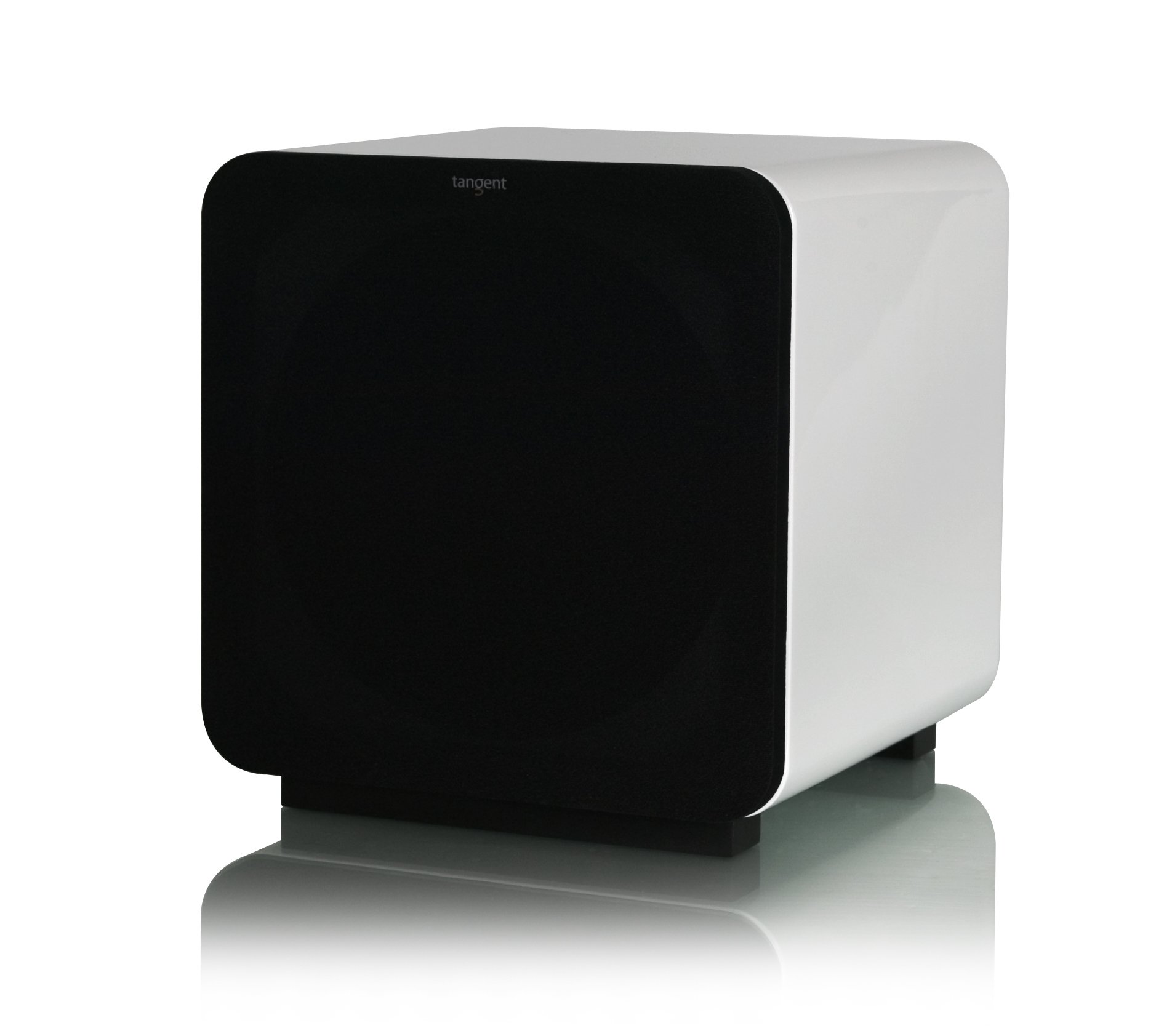

Edessä view of the Tangent EVO E10 SUB subwoofer, showcasinsen kompakti muotoilu ja kaiutinritilä.

Takapaneelin säätimet ja liitännät:

• LINJATULO (V/O): RCA inputs for connecting to your amplifier or receiver's subwoofer output.
• TILAVUUS: Säätää subwooferin kokonaislähtötasoa.
• YLITYS: Adjusts the upper frequency limit of the subwoofer. This determines where the subwoofer takes over from your main speakers.
• VAIHE: A switch (0°/180°) to adjust the phase of the subwoofer output relative to your main speakers.
• Virtakytkin: Kytkee subwooferin päälle tai pois päältä.
• POWER Inlet: Connection for the supplied AC power cable.

5. Asennus

5.1 Sijoitus

Subwooferin sijoittelu vaikuttaa merkittävästi sen suorituskykyyn. Kokeile eri sijainteja löytääksesi parhaan äänenlaadun huoneeseesi. Yleisiä sijoitteluvaihtoehtoja ovat:

• Kulman sijoitus: Often provides the most bass output due to room acoustics, but can sometimes sound boomy.
• Lähellä olevat etukaiuttimet: Can help blend the subwoofer's sound with your main speakers more seamlessly.
• Keskiseinän sijoitus: May offer a more balanced bass response.

Ensure the subwoofer is placed on a stable, level surface and has adequate space for ventilation.

5.2 Liitännät

1. Ensure all audio equipment, including the subwoofer, is turned off and unplugged from the power outlet before making any connections.
2. Connect an RCA cable from the subwoofer output (often labeled 'SUB OUT' or 'LFE') on your amplifier or AV receiver to the LINE IN (L) tai molemmat LINE IN (L/R) inputs on the Tangent EVO E10 SUB. If your receiver has a single LFE output, connect it to the L input on the subwoofer.
3. Once audio connections are made, connect the supplied power cable to the POWER Inlet on the subwoofer and then to a suitable AC wall outlet.

6. Käyttöohjeet

6.1 Virran kytkeminen päälle/pois

After all connections are secure, flip the Virtakytkin on the rear panel to the 'ON' position. The subwoofer is now ready for operation. To turn off, flip the switch to 'OFF'.

6.2 Alkusäädöt

Start with the following settings and fine-tune them to match your main speakers and room acoustics:

• TILAVUUS: Begin with the volume knob set to its minimum position. Gradually increase it until the bass output blends seamlessly with your main speakers without overpowering them.
• YLITYS: Set the crossover frequency based on the low-frequency capabilities of your main speakers. If your main speakers are small, start with a higher crossover frequency (e.g., 80-100 Hz). For larger speakers, a lower frequency (e.g., 60-80 Hz) might be appropriate. The goal is to have the subwoofer handle frequencies below your main speakers' effective range.
• VAIHE: Experiment with the 0° and 180° phase settings. Choose the setting that provides the most impactful and coherent bass response when listening from your primary seating position. This often involves listening to a bass-heavy track and switching between the two settings to hear which one sounds fuller and more integrated.

Viittaa omaan amplifier or receiver's manual for specific settings related to subwoofer integration, such as LFE level and speaker size settings.

7. Huolto

7.1 Puhdistus

To clean the subwoofer, first unplug it from the power outlet. Use a soft, dry, lint-free cloth to wipe down the cabinet. Do not use abrasive cleaners, waxes, or solvents, as these can damage the finish. Avoid spraying liquids directly onto the unit.

7.2 Varastointi

If you need to store the subwoofer for an extended period, unplug it from the power source and store it in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to keep the original packaging for safe storage and transport.

8. Vianmääritys

If you encounter issues with your Tangent EVO E10 SUB, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact your retailer or authorized service center.

9. Tekniset tiedot

The following specifications are typical for the Tangent EVO E10 SUB subwoofer:

10. Takuu ja tuki

Tangent products are manufactured to the highest quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Tangent website. For technical support or service inquiries, please contact your authorized Tangent dealer or distributor.
