1. Johdanto
This manual provides essential information for the safe and effective operation, setup, and maintenance of your Sealey SR123 Spot Welder with Digital Timer. The SR123 features integral electronic control, allowing the operator to select material thickness, which automatically calculates the optimum weld duration. It also includes a pulse mode, suitable for high-stress steels commonly found in modern vehicle construction. Please read this manual thoroughly before use and retain it for future reference.

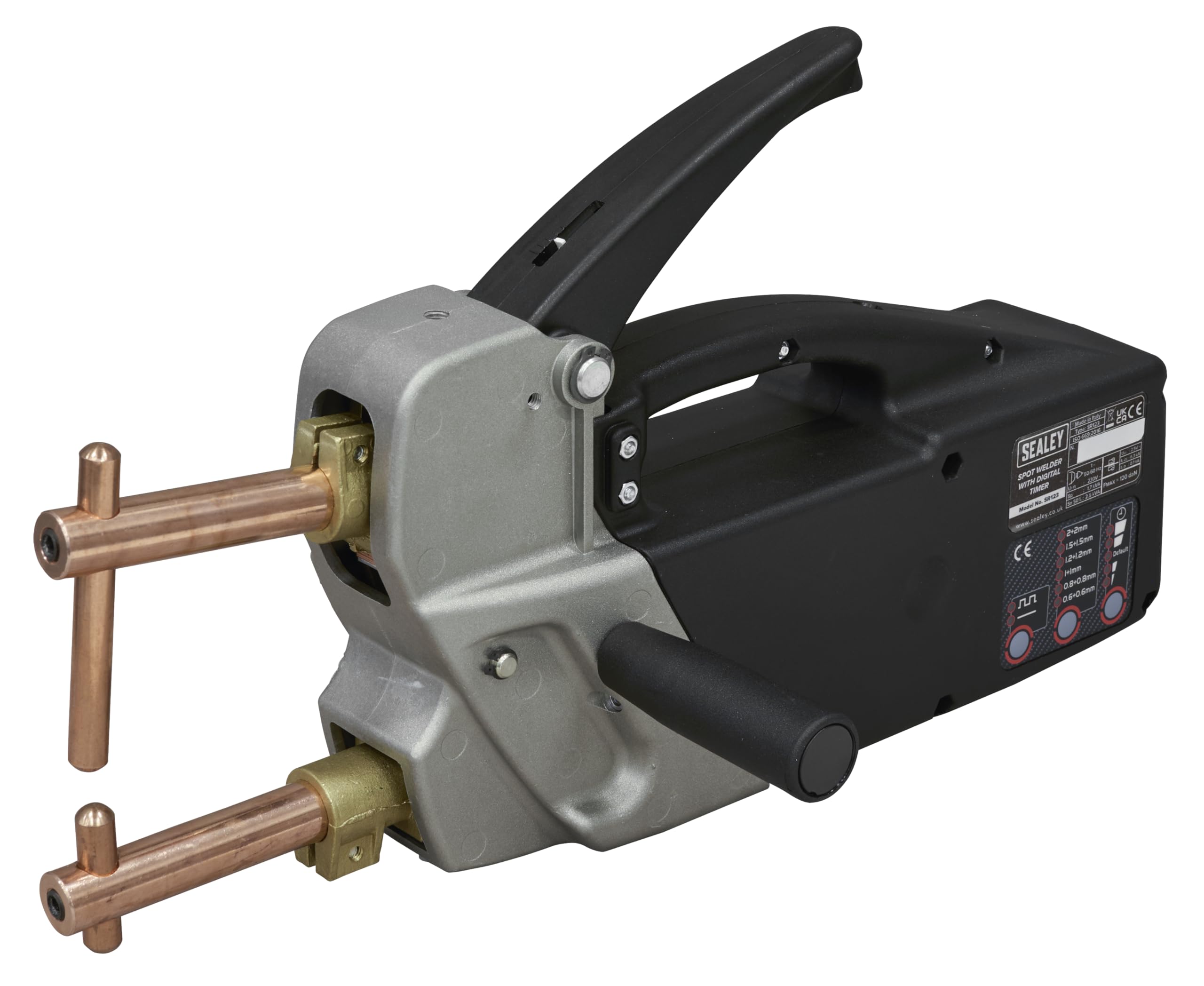

Image 1.1: The Sealey SR123 Spot Welder, showcasing its ergonomic design and welding arms.
2. Turvallisuustiedot
VAROITUS: Always follow general safety precautions when operating welding equipment. Failure to do so may result in serious injury or damage to the equipment.
- Henkilökohtaiset suojavarusteet (PPE): Always wear appropriate PPE, including welding helmet with proper shade, safety glasses, welding gloves, and protective clothing to prevent burns and eye damage.
- Työalue: Ensure the work area is clean, well-ventilated, and free from flammable materials. Keep bystanders away from the welding area.
- Sähköturvallisuus: Connect the welder to a properly grounded power supply. Do not operate in damp or wet conditions. Inspect power cords for damage before each use.
- Höyryt ja kaasut: Hitsaus tuottaa höyryjä ja kaasuja, jotka voivat olla terveydelle vaarallisia. Työskentele hyvin ilmastoidussa tilassa tai käytä kohdepoistoa.
- Kuumat pinnat: Welding arms and electrodes become extremely hot during operation. Allow them to cool before handling or storing.
- Huolto: Disconnect the welder from the power supply before performing any maintenance or changing electrodes.
Kuva 2.1: ohiview of the spot welder highlighting key features including safety warnings and controls.
3. Tuotteen ominaisuudet
The Sealey SR123 Spot Welder is designed for efficient and precise spot welding with several key features:
- Digital Electronic Control: Automatically calculates optimum weld duration based on selected material thickness.
- Säädettävät parametrit: All automatically selected parameters can be manually overridden by the operator if specific requirements demand it.
- Pulssitila: Features a pulse mode for enhanced welding performance on high-stress steels.
- Kevyt rakenne: Die-cast aluminium head and chassis reduce overall weight for improved handling and reduced operator fatigue.
- Lämmön vähennys: Komposiitti casing and handle minimize heat transfer to the operator during extended use.
- Mukana tulevat tarvikkeet: Supplied with 120mm welding arms, electrodes, and a side handle for immediate use.
- Eristysluokka: Rated as Insulation Class B.
Image 3.1: Visual representation of the welder's key features, including adjustable jaw pressure, digital controls, versatile welding capabilities, and a robust handle.
4. Asennus
- Purkaminen: Carefully remove the spot welder and all accessories from the packaging. Inspect for any shipping damage.
- Attach Welding Arms: Securely attach the 120mm welding arms to the welder head. Ensure they are firmly seated and tightened.
- Install Electrodes: Insert the electrodes into the welding arms. Ensure they are clean and properly aligned.
- Attach Side Handle (Optional): If desired, attach the side handle for improved grip and control during operation.
- Virtaliitäntä: Connect the welder to a suitable power outlet (refer to specifications for voltage requirements). Ensure the power supply is grounded.
- Työkappaleen valmistelu: Clean the surfaces of the materials to be welded. Remove any rust, paint, or grease to ensure a good electrical contact and strong weld.
Image 4.1: Detail of the welding arms and electrodes, showing how they are assembled for operation.
5. Käyttöohjeet
- Virta päälle: Turn on the spot welder. The digital control panel will illuminate.
- Select Material Thickness: Use the control panel to select the thickness of the material you intend to weld. The system will automatically calculate the optimal weld duration. Refer to Image 5.1 for control panel details.
- Pulse Mode (Optional): For high-stress steels, activate the pulse mode via the control panel if required.
- Adjust Parameters (Optional): If necessary, you can manually override the automatically selected weld parameters using the controls.
- Työkappaleen sijainti: Place the materials to be welded between the electrodes. Ensure good contact and alignment.
- Aloita hitsaus: Firmly press the operating lever. The weld will only start when sufficient pressure is applied, preventing accidental firing. Hold the lever until the weld cycle is complete.
- Tarkista hitsaus: After the weld, release the lever and carefully remove the workpiece. Inspect the weld for quality and penetration.
- Toistaa: Continue welding as needed, ensuring electrodes remain clean and properly aligned.
Image 5.1: The digital control panel, showing options for material thickness selection (e.g., 0.6+0.6mm to 2+2mm) and pulse mode.
Image 5.2: The spot welder actively joining two metal pieces, demonstrating its application.
6. Huolto
Regular maintenance ensures the longevity and optimal performance of your spot welder. Always disconnect the power before performing any maintenance.
- Elektrodin tarkastus: Regularly inspect electrodes for wear, pitting, or mushrooming. Worn electrodes should be dressed or replaced to ensure consistent weld quality.
- Puhdistus: Keep the welder clean and free from dust and metal particles. Use a dry cloth to wipe down the casing. Avoid using solvents that could damage the composite materials.
- Arm and Jaw Inspection: Check the welding arms and jaws for any signs of damage or looseness. Ensure all fasteners are tight.
- Kaapelin tarkastus: Periodically inspect the power cable and welding cables for cuts, abrasions, or signs of heat damage. Replace damaged cables immediately.
- Varastointi: Säilytä hitsauskonetta kuivassa ja puhtaassa paikassa, kun sitä ei käytetä.
7. Vianmääritys
If you encounter issues with your Sealey SR123 Spot Welder, refer to the following common problems and solutions:
| Ongelma | Mahdollinen syy | Ratkaisu |
|---|---|---|
| Ei virtaa hitsauskoneeseen | Virtajohto irti, sulake lauennut, virtakytkin viallinen. | Check power connection, reset circuit breaker, contact qualified service personnel if switch is faulty. |
| Poor weld quality or no weld | Dirty electrodes, worn electrodes, incorrect material thickness setting, insufficient pressure, dirty workpiece. | Clean or replace electrodes, verify material thickness setting, ensure firm pressure on operating lever, clean workpiece surfaces. |
| Liiallinen kipinöinti | Dirty or worn electrodes, incorrect weld settings. | Clean or replace electrodes, adjust weld duration/thickness settings. |
| Welder overheats | Ylitetty käyttösuhde, huono ilmanvaihto. | Allow welder to cool down, ensure adequate ventilation around the unit. |
8. Tekniset tiedot
| Erittely | Arvo |
|---|---|
| Mallinumero | SR123 |
| Merkki | Sealey |
| Tuotteen mitat | 46.6 x 34.2 x 16.6 cm |
| Tuotteen paino | 10.6 kg |
| Eristysluokka | B |
| Included Arms | 120mm welding arms |
9. Takuu ja tuki
The Sealey SR123 Spot Welder comes with a 1 vuoden takuuKatso Sealeyn virallista website or your purchase documentation for full terms and conditions regarding warranty claims and customer support.
Image 9.1: Sealey brand logo indicating a 1-year guarantee.
For technical assistance or spare parts, please contact your authorized Sealey dealer or visit the official Sealey websivusto: www.sealey.co.uk.
